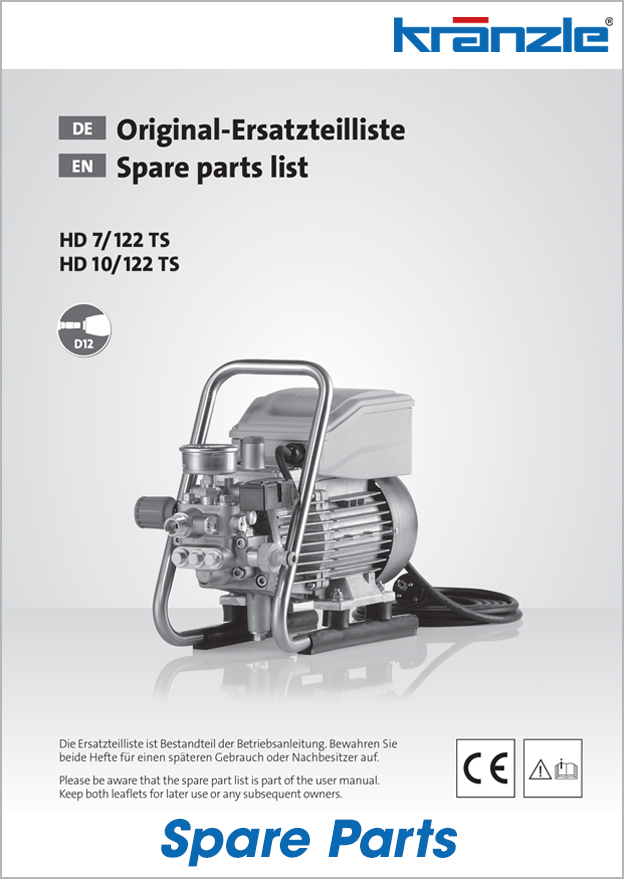

Original Kranzle Portable Series Spare Parts
See Diagram & Choose Number
7. O-Ring 12x2.2 - 150051
8. O-Ring 11x1.5 - 12256
9. Seat - 14118
10. Spring Clip - 13147
11. Piston Easy Start - 490411
12. Spring - 49042
13. Blank - 49043
14. Piston Inc Parbacks - 44532
15. Parbaks 14 mm - 141231
16. Parbaks 6 mm - 141232
17. Washer - 43045
18. Nut for Spindle - 141301
19. Nut - 141271
20. Spring - 43046
21. Washer - 43047
22. Bearing - 43048
23. Handle - 43049
24. Nut M6 - 43010
25. End Cap - 43050
26. Pressure Gauge - 15039
49. Spring - 40520
50. O-Ring - 12136
51. Piston Guide - 150091
52. O-Ring 13x2.6 - 15017
53. O-Ring 14x2.1 43445
54. Parbaks 4mm - 121362
55. Washer - 150151
56. Spring - 15016
57. Spindle - 150102
58. Parbaks 7mm - 15013
59. End Cap M10x1 - 133851
60. Switch Box Bottom - 15200
61. Seal - 15202
62. Nut M4 - 12138
63. Gland - 15203
64. Cabel 2x1.5 mm² - 44552
65. Screw 2.8x16 - 15024
66. Switch Box Top - 15201
67. O-Ring 44x2.5 - 15023
68. Micro Switch - 15018
69. Bolt M4x22 - 1502570. Unloader Complete - 445321
71. Micro Switch Spindle Complete - 150093
72. Micro Switch Complete - 44561
73 Complete Pump Head (HD 10/122 TS) - 445911
73.1 Complete Pump Head (HD 7/122 TS) - 445912Prices are per item.
-
