KRANZLE Ventos 32L Bottom Part

KRANZLE Ventos 32L Bottom Part

Genuine Spare Parts

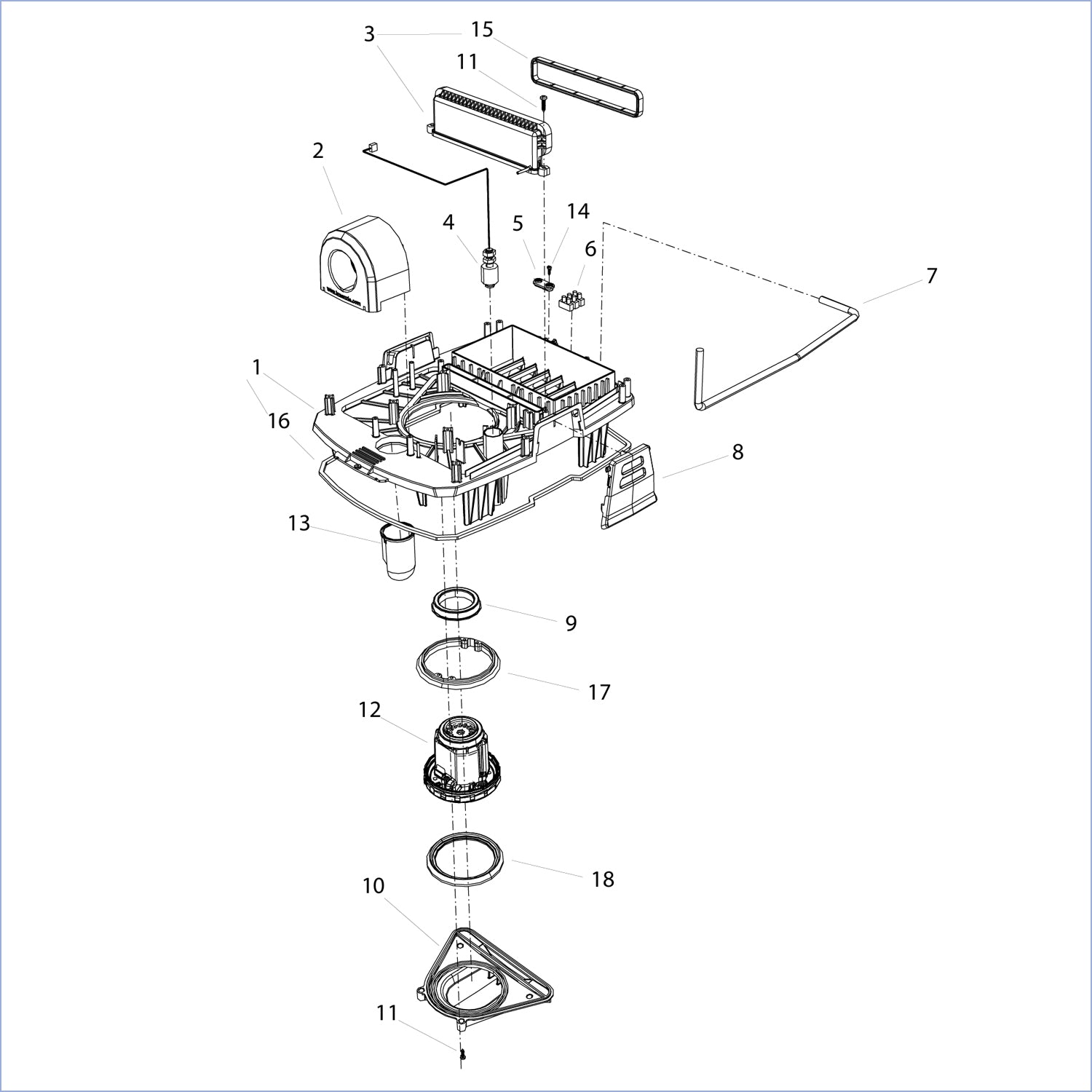

See Diagram & Click the link for price & availability

1. Carrier plate 457014

2. Input piece antistatic 457019

3. Suction channel with seal 457020

4. Float switch 457087

5. Cable clamp power connection cable 457084

6. Luster terminal 10mm² 3-pole 43326

7. Connecting cable 3x 1.5mm² 457086

8. Closing clip 457036

9. Motor seal small 457070

10. Cover plate motor 457016

11. Screw 426471

12. Motor 230 V 50Hz 457085

13. Injection piece 457018

14. Sheet metal screw 40282

15. Seal suction channel 457021

16. Seal carrier plate 457015

17. Motor seal with guides 457069

18. Motor seal wide 457068

20. Turbine with seals (item 9, item 12, item 17, item 18) 457106
