KRANZLE Therm CA 11/130 Flow Safety Block

KRANZLE Therm CA 11/130 Flow Safety Block

Genuine Spare Parts

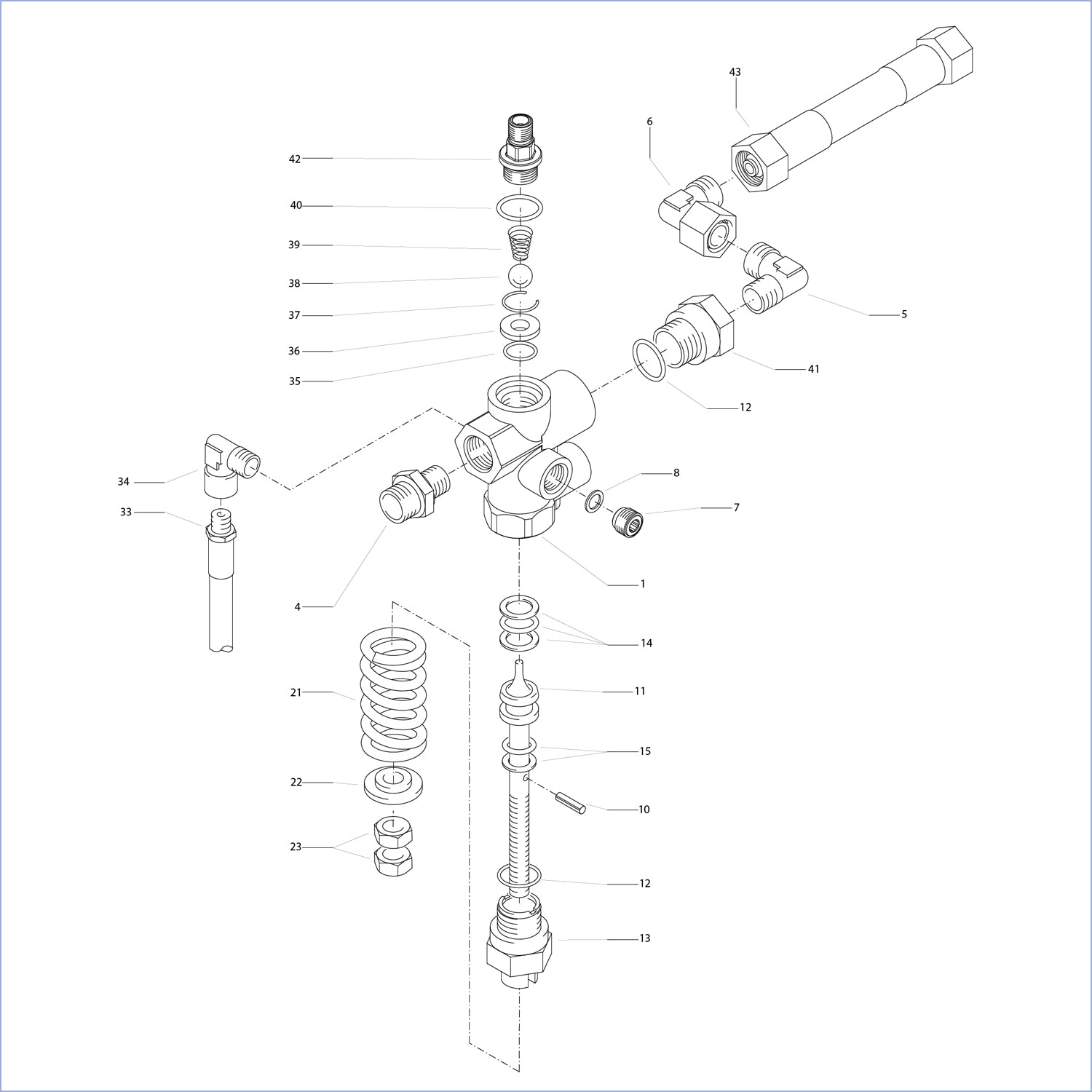

See Diagram & Click the link for price & availability

1. Valve body 14145

4. Erme screw connection R 3/8“ x 12 mm 40076

6. Ermeto angle 12 mm x 12 mm nut 44865

7. Plugs 13387

8. O'Ring 13275

10. Chip pin 14148

11. Control piston 14133

12. O'Ring 13150

13. Piston guide 14130

14. Parbaks 16 mm 13159

15. Parbaks 8 mm 14123

21. Valve spring 14125

22. Spring pressure washer 14126

23. Hexagon nut 14144

33. Return hose S200 44867

34. Screw-in angle 40121

35. O'Ring 12256

36. Stainless steel seat 14118

37. Snap ring 13147

38. Stainless steel ball 8.5 mm 12245

39. Stainless steel spring 14119

40. O'Ring 13150

41. Input piece 131361

42. Connection part pressure measuring line 44868

43. Connection hose 12mm S200 flow w 440932

Control piston complete (Items 10-15; 21-23) 141101

Safety valve cpl. (Items 1-15; 21-42) 44888
