KRANZLE Medium Quadro 799/899 TST Motor

Genuine Spare Parts

See Diagram & Click the link for price & availability

1. Motor 100 4.0kW 400V / 50Hz 40710

2. A-bearing flange 40700

3. Rotor 100 400V / 50Hz 40703

4. Fan wheel BG100 407021

5. Fan cover BG 100 40701

7. Flat gasket 43030

10. Angular contact ball bearings 40704

11. Oil seal 40080

12. Key 40459

13. Ball bearings 40538

14. Allen screw 43037

18. Screw 42542

19. Screw 41489

22. Ground screw complete. 43038

23. Switches with push buttons 42644

24. Screw 43417

26. Screw 414141

28. Screw 43415

29. Luster terminal 5-pin. 433261

30. Contactor 100-C12KN10 3x400V 50/60 Hz 1 460051

31. Switch box lower part 46012

32. Switch box cover 46013

33. Control board switch-off delay. 42563

34. Clamp frame with switch seal 43453

36. Screw 44525

37. PG 16 screw connection 414191

38. Gasket for switch box cover 460131

39. Lock nut for PG9 screw connection 410871

40. Lock nut for PG16 screw connection 44119

41. PG 9 - screw connection 42541

42. Overcurrent release 3-pole 9 – 12.5 A 426412

Switch box complete Items 23 - 42 46083

Motor complete without switch pos. 1 - 22 24080

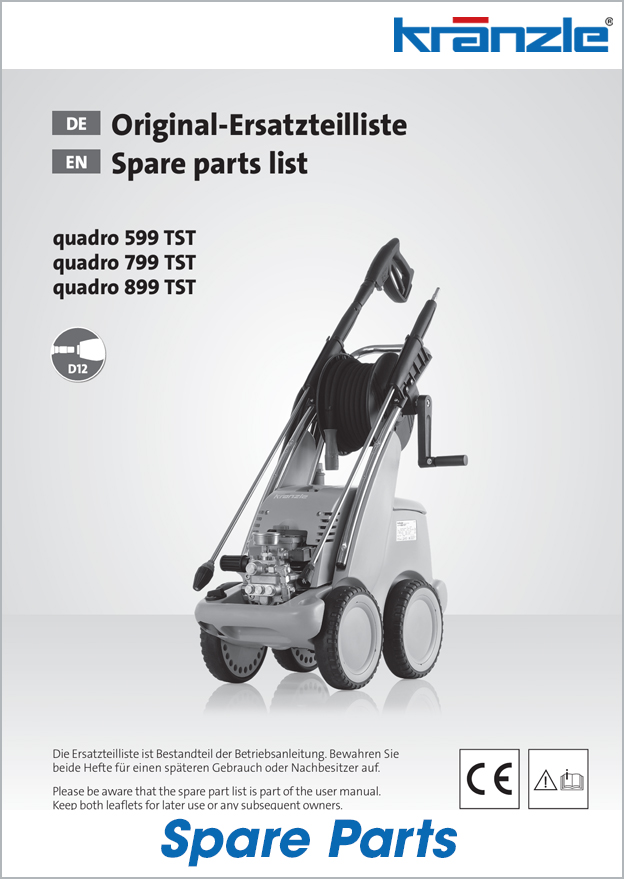

Download Documents
