KRANZLE Medium Quadro 599/799/899 TST Valve Housing

KRANZLE Medium Quadro 599/799/899 TST Valve Housing

Seen it Cheaper?

KRANZLE Medium Quadro 599/799/899 TST Valve Housing

Genuine Spare Parts

See Diagram & Click the link for price & availability

1. Valve housing AM pump 404511

2. O-ring 41716

3. Valves (green) 417151

4. O-ring 13150

5. Valve plug 41714

5.1 Valve plug with R1/4“ 42102

7. Allen screw 425091

8. Hose nipples 46038

9. Hose clamp 440545

10. Fabric Hose 0.4m 42622

11. Sealing ring 40019

12. Plugs 40018

13. Fabric sleeve 410131

14. Backing ring 18 mm 410142

15. O-ring 40026

16. Leakage ring 18 mm 41066

18. Sleeve 410132

20. Intermediate ring 18 mm 410152

21. Aluminum sealing ring 132751

23. Pressure ring 41018

24. U-sit Ring 12387

25. O-ring 12256

26. Stainless steel seat 14118

27. Snap ring 13147

28. Output part pump 46039

29. Copper ring 42104

30. Sealing plugs R1/4" with collar 42103

31. Sealing plug 13385

32. Sealing plugs 13158

33. Output part 40522

34. Stainless steel ball 12122

35. Check spring 141201

36. Plugs 13387

37. O-ring 40016

39. Ermeto angle 44092

Repair sets:

41. Repair kit for cuffs 18 mm 410491

consisting of 3x item 13 each; 6x item 14;

3x item 15; 3x item 23; 3x item 18

42. Repair set valves for APG pump 417481

consisting of 6x item 2 each; 6x item 3;

6x item 4

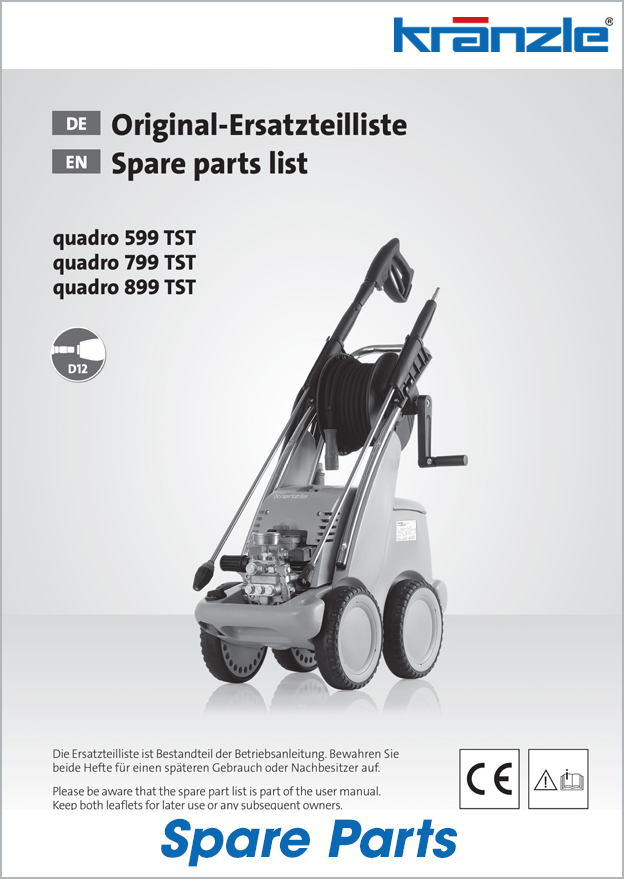

Download Documents
