KRANZLE E-Therm 603 M 36kW, 873 M 48kW Valve Housing

KRANZLE E-Therm 603 M 36kW, 873 M 48kW Valve Housing

Seen it Cheaper?

KRANZLE E-Therm 603 M 36kW, 873 M 48kW Valve Housing

Genuine Spare Parts

See Diagram & Click the link for price & availability

1. Valve housing AM pump 40514

2. O-ring 15 x 2 41716

3. Valves (green) for APG pump 417151

4. O-ring 16 x 2 13150

5. Valve plug 41714

7. Hex socket screw M10 x 35 425091

8. Suction hose with elbow and union nut 44469

9. Sealing plug 13385

10. Union nut ¾" 44458

11. Sealing ring 132751

12. Outlet part pump e-therm 442155

13. Cuff 18 x 26 x 4/2 410132

14. Backing ring 18mm 410142

15. O-ring 40026

16. Leakage ring 18mm 41066

18. Fabric sleeve 18 x 26 x 5.5/3 410131

19. Suction plug hose connector 44189

20. Intermediate ring 18mm 410152

23. Pressure ring 41018

24. Suction port 3/8" male x 3/4" male 44471

25. O-ring 11 x 1.5 12256

26. Stainless steel seat Ø 8.2 13146

27. Snap ring 13147

28. Pump outlet R1/4" x 12L 44394

32. Sealing plug M 8 x 1 13158

33. Outlet sealing piece 40522

34. Stainless steel ball Ø10 12122

35. Return spring “K” 141201

37. O-ring 18 x 2 40016

50. Valve repair kit 417481

51. Cuff repair kit 18mm 410491

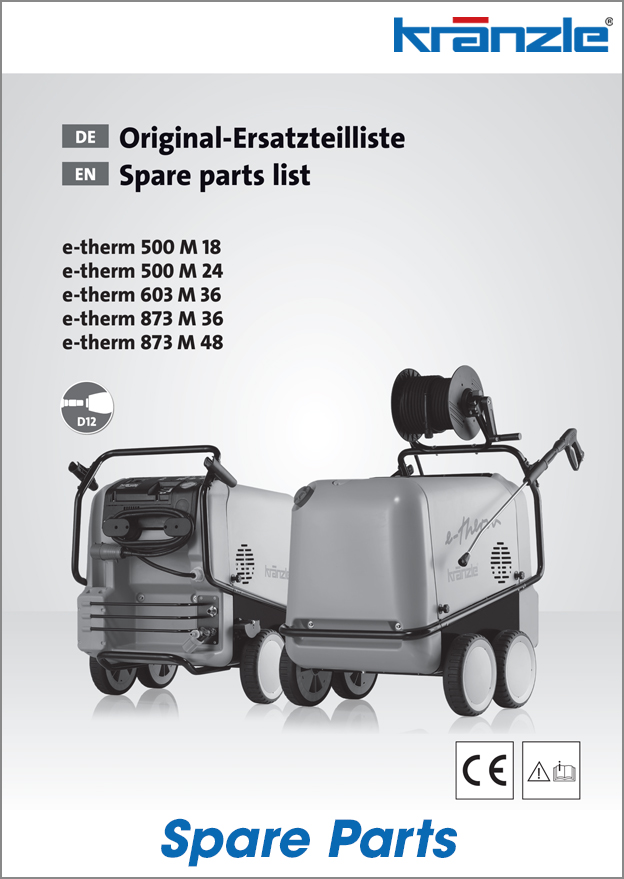

Download Documents
