KRANZLE E-Therm 500 M 24kW, 603 M 36kW, 873 M 48kW Hose Drum

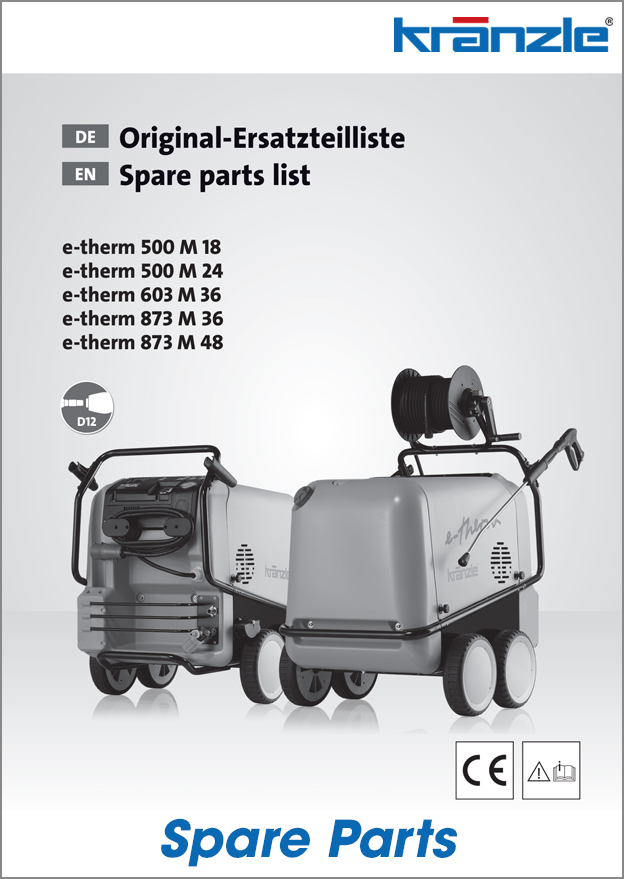

Genuine Spare Parts

See Diagram & Click the link for price & availability

1. Side panel hose guide 40302

2. Side panel water guide 40301

3. Drum lower part 40304

4. Drum upper part 40303

5. Hex socket screw M4 x 25 40313

6. Bearing block with brake 40327

7. Bearing block left 40305

8. Clamping piece 40307

9. Plastic screw 5.0 x 20 43018

10. Drive shaft 40328

11. Shaft water guide 40323

12. Elastic stop nut M4 40111

13. Crank complete 403200

16. Shaft retaining ring 22mm 40117

18. Washer Ø 6.4 50189

19. Locking washer 40325

20. Seal kit 134101

22. Screw M 5 x 10 43021

23. Ermeto elbow R1/4" male x 12L 44864

35. Retaining bracket 44143

36. Rubber plug 42613

37. Carriage bolt M8 x 40 44159

38. Elastic stop nut M8 41410

40. Hook 42612

42. O-ring 9.3 x 2.4 132731

44. Connecting hose NW8 1m 44385

45. High-pressure hose NW8 20m 443812

60. Hose reel complete without hose, without mounting bracket 44392

61. Mounting bracket complete consisting of items 35 – 38 441431
