KRANZLE Colly 800 Complete Assembly

KRANZLE Colly 800 Complete Assembly

Genuine Spare Parts

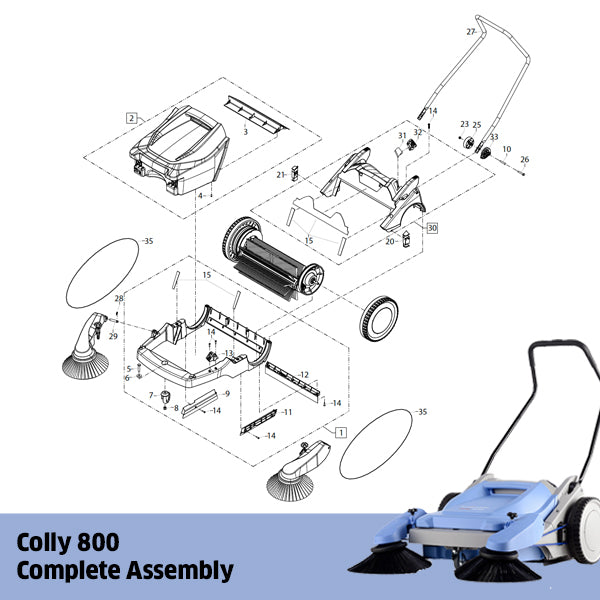

See Diagram & Click the link for price & availability

1. complete base frame 505010

2. Complete container 505012

3. Sweeping strip 505029

4. Plastic screw 5.0 x 14 505075

5. Hex screw M10 x 45 50180

6. Washer Ø 10.5 DIN 9021 50182

7. Swivel caster 501641

8. Elastic stop nut M10 40139

9. Dust strip right 505024

10. Adapter bushing 505060

11. Dust strip left 505025

12. Dust strip rear 505026

13. Bearing block, side brush left 505061

14. Screw 6.0 x 30 43423

15. Container seal Colly (5-piece set) 505066

20. Belt guide, left 505063

21. Belt guide, right 505064

23. Elastic stop nut M8 41410

25. Joint shell 505068

26. Hex bolt M8 x 45 42815

27. Push bar 505051

28. Locking washer 10 DIN6799 50133

29. Joint bolt, side brush arm 505050

30. Cover frame 505011

31. Foam filter 505071

32. Vent frame, left, right 505070

33. Locking plate, right, left 505069

35. Round belt for side brush 505057
