KRANZLE 1050 P Unloader

KRANZLE 1050 P Unloader

Seen it Cheaper?

KRANZLE 1050 P Unloader

Genuine Spare Parts

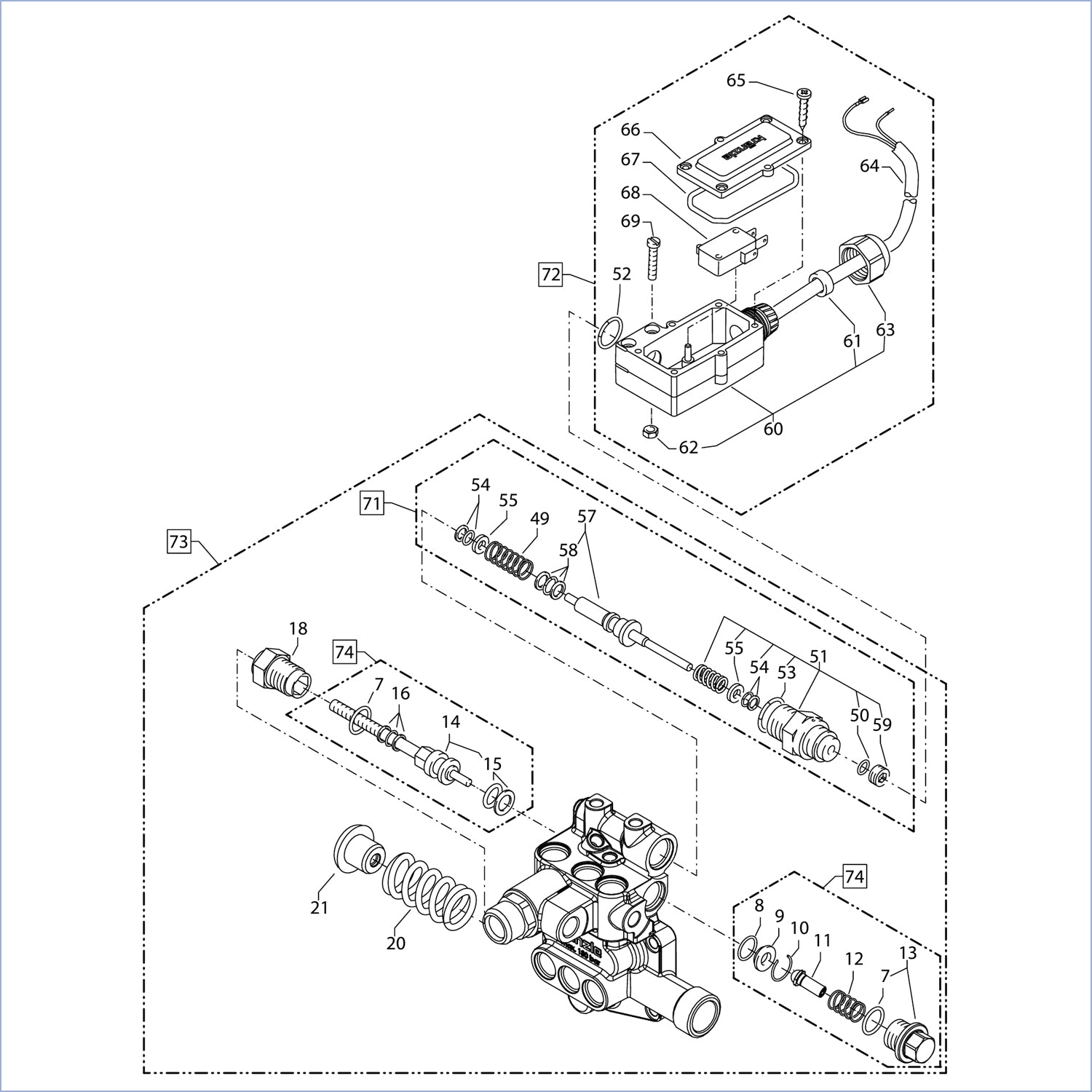

See Diagram & Click the link for price & availability

7. O'Ring 15.005 1

8. O'Ring 12.256

9. Stainless steel seat 14.118

10. Circlip 13.147

11. Start-up relief valve 49.041 1

12. Stainless steel spring 49.042

13. Locking screw 49.043

14. Control piston 6 mm for AZC with seals 49.243 1

15. Parbaks for pistons 14 mm 14.123 1

16. Parbaks for spindle 6 mm 14.123 2

18. Piston guide 6 mm 14.130 1

20. Black spring for AZ pump 43.046

21. Spring compression nut 49.243 0

49. Compression spring 40.520

50. O'Ring 12.136

51. Guide part control tappet 49.058 0

52. O'Ring 15.017

53. O'Ring 43.445

54. Parbaks 4 mm 12.136 2

55. Support disk 15.015 1

57. Control plunger long 15.010 2

58. Parbaks 10 mm 12.136 2

59. Plug 13.385 1

60. Electric switch housing 15.204

61. Rubber sleeve 15.202

62. Hexagon nut M 4 12.138

63. Union nut 15.203

64. Cable 15.203

65. Screw 15.024

66. Electric switch cover 15.201

67. O'Ring 15.023

68. Micro switch 15.018

69. Screw 15.025

71. Repair set for pressure switch mechanism 15.009 3

72. Pressure switch complete without mechanics 49.054

73. Valve housing complete for K1050 without hose reel 49.152 1

74. Repair kit for unloader valve 49.2440
Download Documents

Downloads for this product are currently unavailable, please get in contact if you require any documentation.
