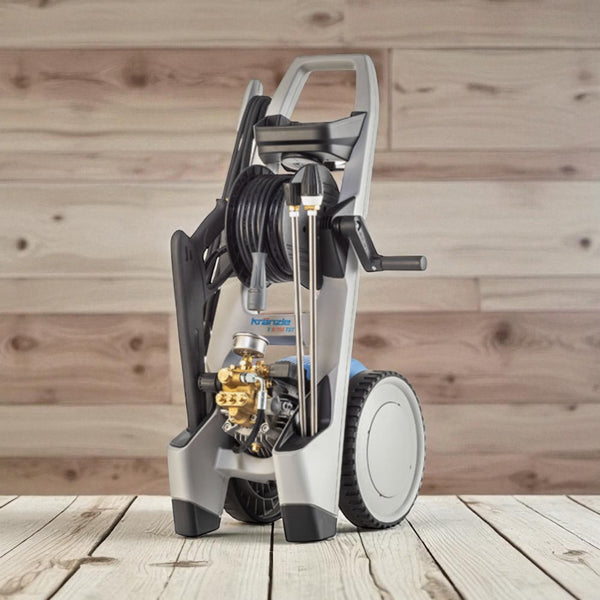

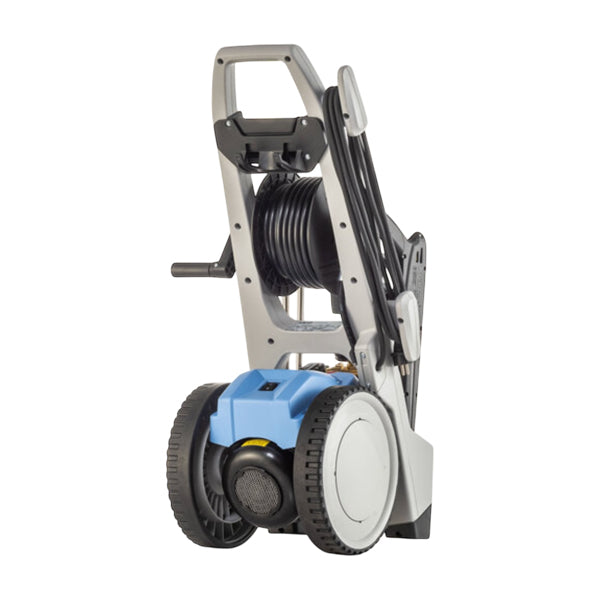

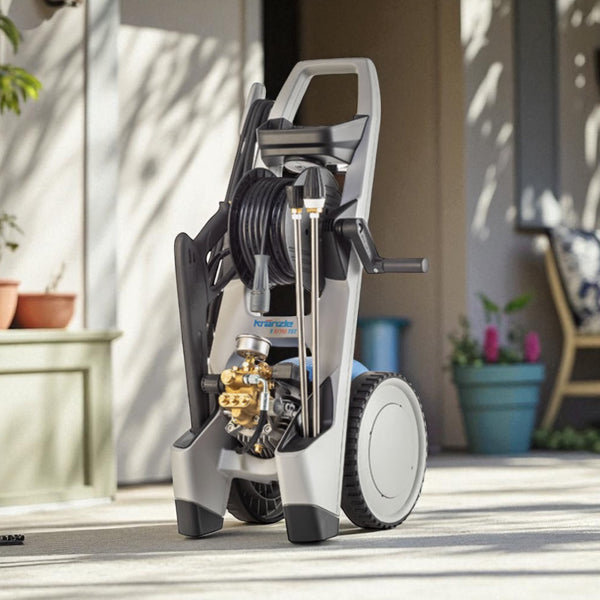

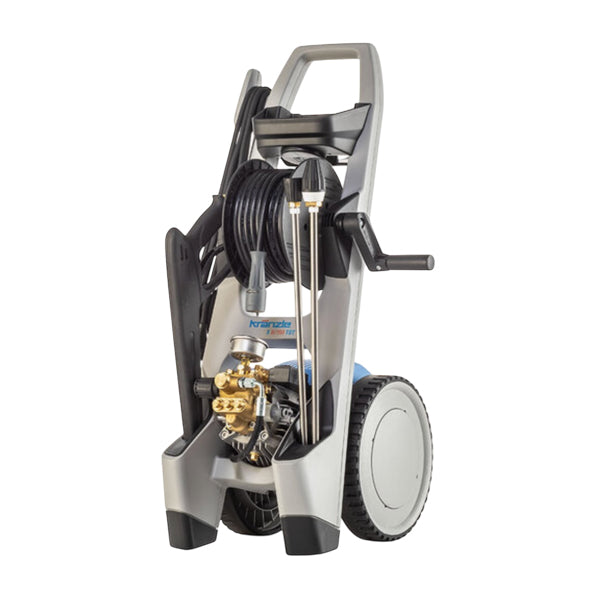

• KRANZLE X 8/150 TST Order No. 603600

    The X series offers cleaning performance and operability at the highest level. Thanks to the high working pressure, coupled with the innovative design, even demanding cleaning jobs are no obstacle. Whether floors, walls or other objects, the powerful models guarantee optimum results. Thanks to the wide range of accessories in conjunction with the D12 plug-in system, even changing cleaning tasks can be completed in no time at all.



    Features & Benefits:

    Quick release plug-in system D12

    Kränzle axial pump

    Total-Stop system

    Stepless pressure regulation

    High-pressure hose with Twist-Stop screw connection



    Included With Machine:

    Hose drum

    High Pressure Hose (m) 15

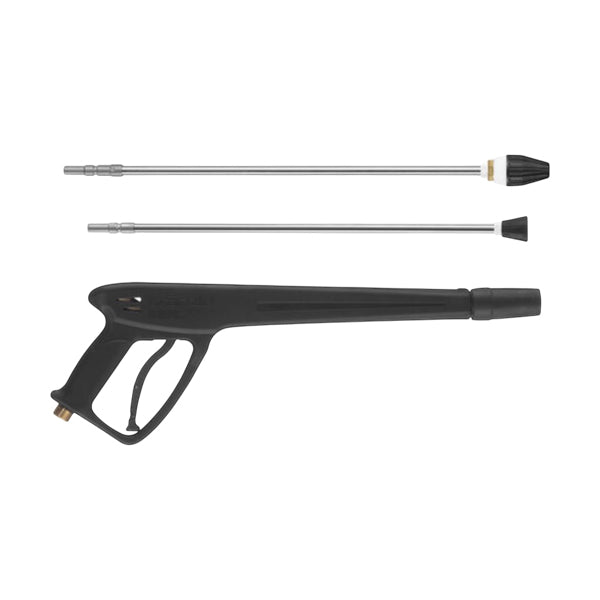

    Starlet 4 Trigger Gun

    Lance with Flat Jet Nozzle

    Lance with Dirtkiller



    Alternative part numbers :- 603600, 603600.0, 60.3600.0

  • Ord. no.



    603600

    Operating pressure

    bar


    30-150

    Operating pressure

    MPa


    3-15

    Water output

    l/h


    480

    Admissible overpressure

    bar


    170

    Admissible overpressure

    MPa


    17

    Motor speed

    U/min


    1400

    Connection Voltage

    V


    230

    Connection Phase

    ~


    1

    Connection Frequency

    Hz


    50

    Connection Amperage

    A


    9,8

    Power intake

    kW


    2,25

    Power output

    kW


    1,7

    Power supply cable Length

    m


    5

    Length

    mm


    470

    Width

    mm


    360

    Height

    mm


    875

    Weight

    kg


    33

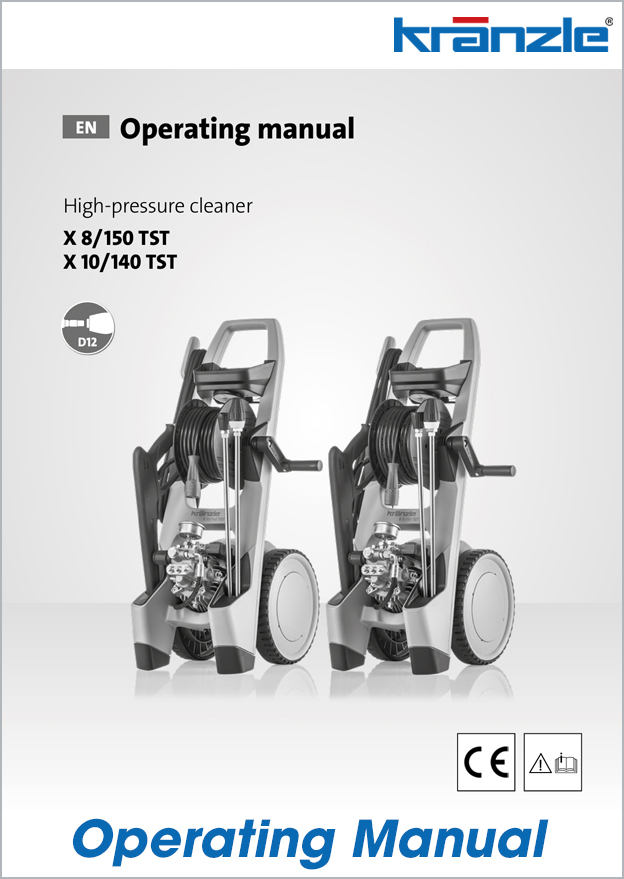

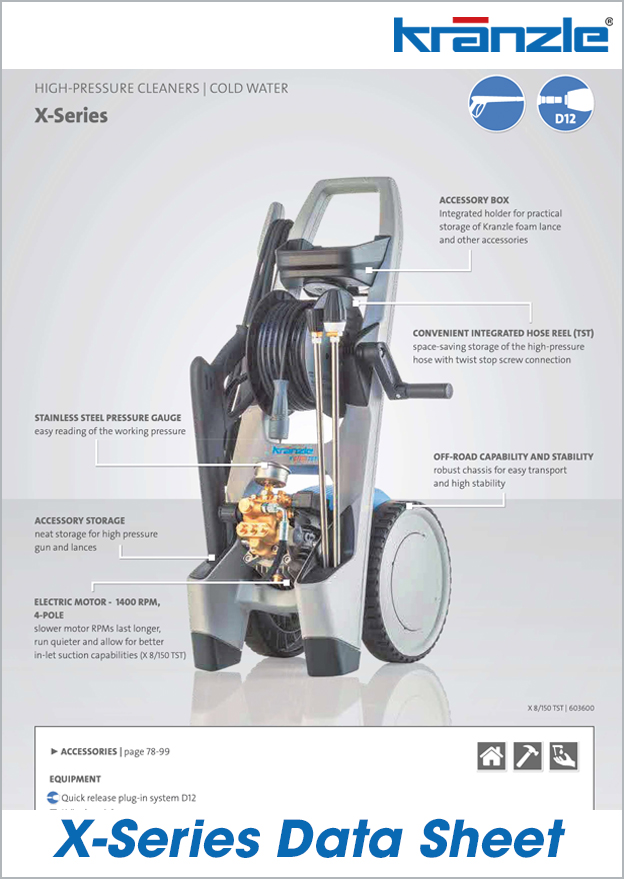

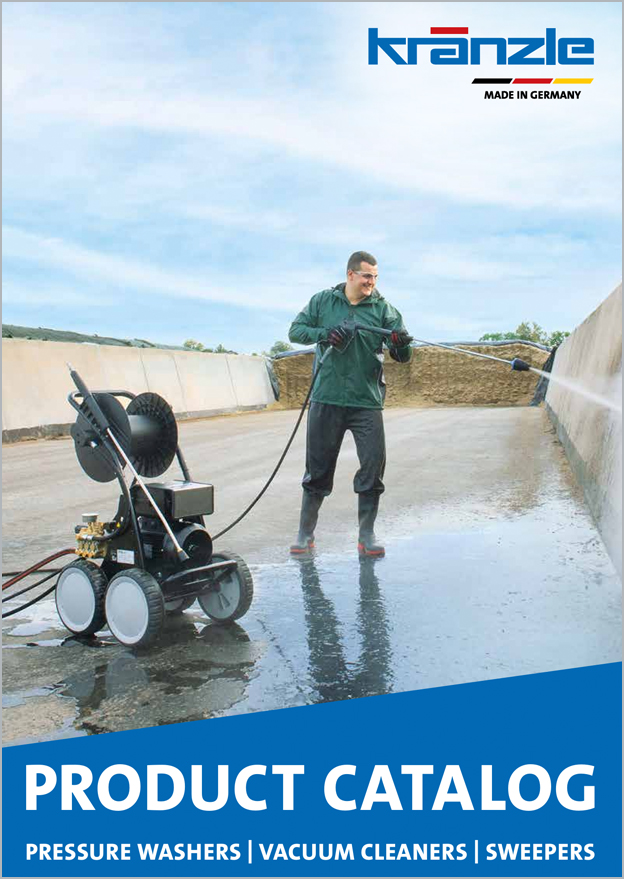

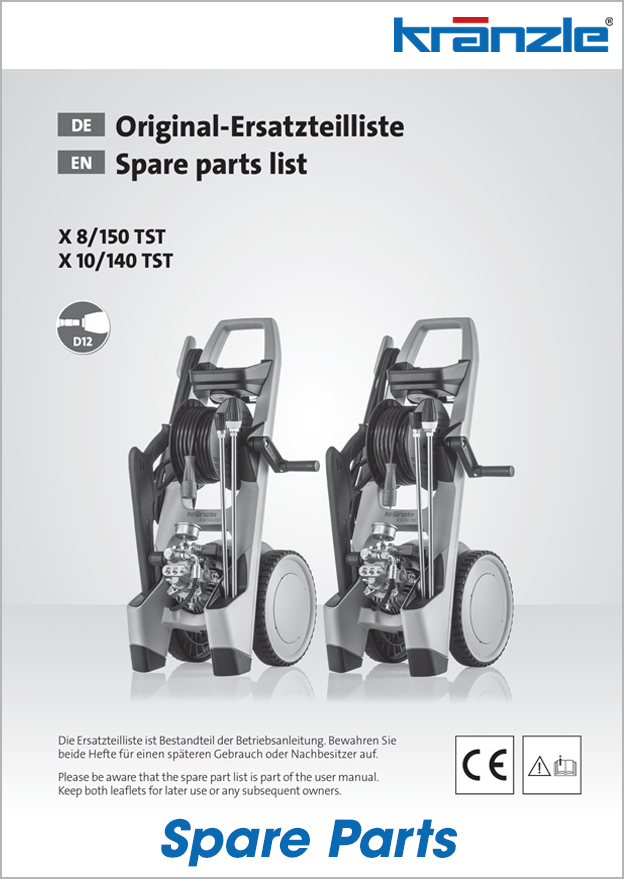

  • Download Documents
