KRANZLE X 8/150 TST & X 10/140 TST Valve Housing

KRANZLE X 8/150 TST & X 10/140 TST Valve Housing

Seen it Cheaper?

KRANZLE X 8/150 TST & X 10/140 TST Valve Housing

Genuine Spare Parts

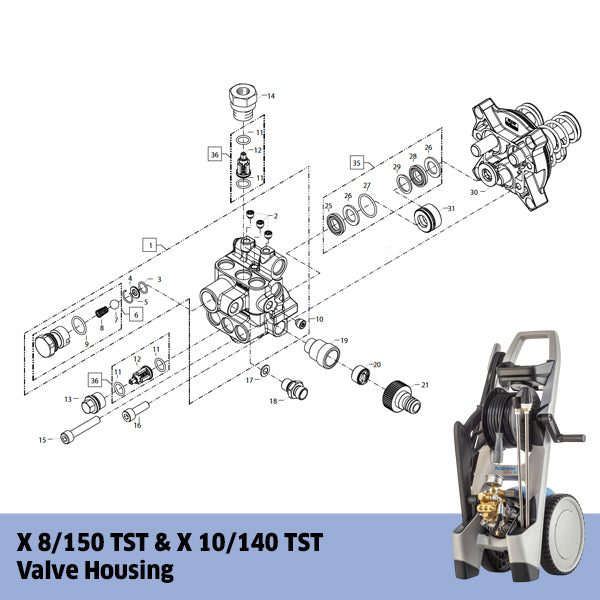

See Diagram & Click the link for price & availability

1. Valve body 49026

2. Sealing plug M 8 x 1 13158

3. O-ring 11 x 1.5 12256

4. Stainless steel seat 14118

5. Retaining ring 13147

6. Outlet part 40522

7. Stainless steel ball 10.0mm 12122

8. Return spring 141201

9. O-ring 18 x 2 40016

10. Sealing plug M 10 x 1 13385

11. O-ring 12 x 2 150051

12. Valve red 16 x 8 x 18 41612

13. Valve plug M18 x 1.5 41011

3 Valve plug with R1/4" female thread 410111

15. Hex socket screw M8 x 45 41017

16. Hex socket screw M8 x 25 40053

17. Aluminum sealing ring 132751

18. Ermeto R1/4" male thread x Ermeto 8 screw fitting 41042

19. Suction port 41016

20. Water filter 410462

21. Quick-release coupling 410472

25. Fabric sleeve 15 x 24 x 5 429021

26. Backing ring 15 x 24 x 2 42903

27. O-ring 24 x 2 49024

28. Sleeve 15 x 24 x 5 42902

29. Red support ring 42913

30. Spacer ring 15mm 429041

31. Leakage ring 15mm 481511

35. Water Seal Kit 15mm 496036

36. Repair kit valves red 41648

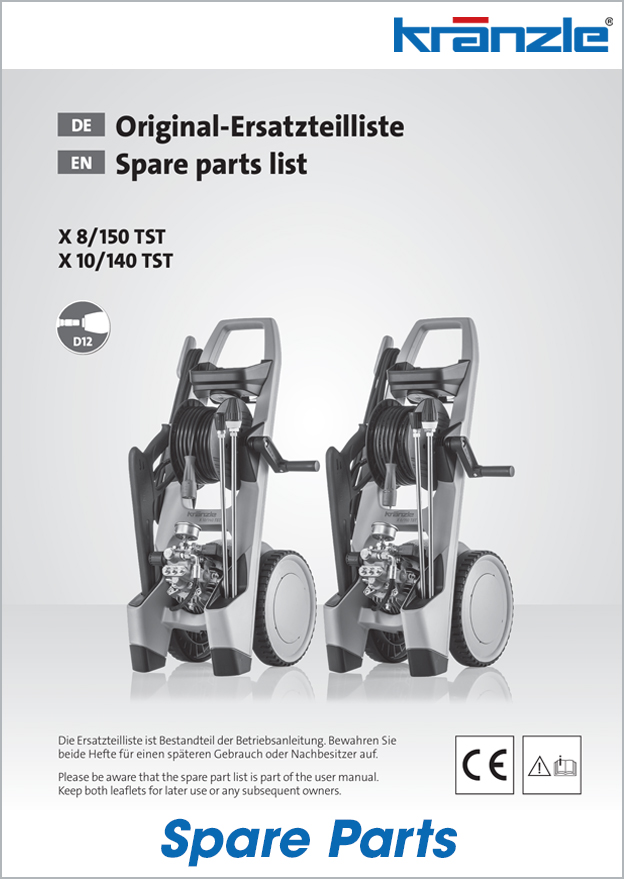

Download Documents
