KRANZLE Therm-RP 1200, 1400, 1600 Transmission

KRANZLE Therm-RP 1200, 1400, 1600 Transmission

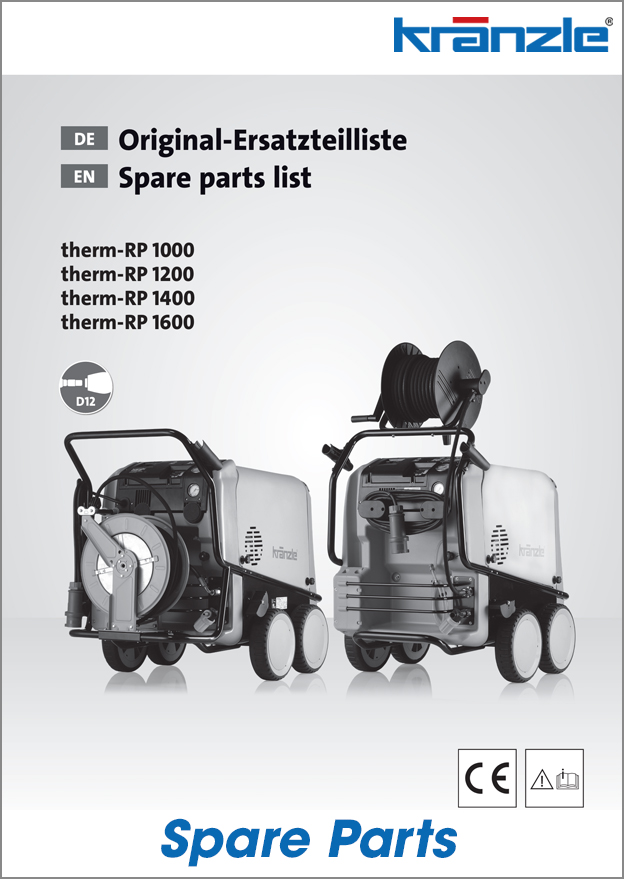

Genuine Spare Parts

See Diagram & Click the link for price & availability

2. Oil seal 485020

16. Washer Ø 8.4 41409

23. Hexagon screw 485021

23.1 Hexagon screw 40221

24. Bearing cover closed 485022

25. O'Ring 485048

26. Tapered roller bearing 33205 485024

27.1 Crankshaft 16 l/min (therm-RP 1000) 485025

27.2 Crankshaft 19 l/min (therm-RP 1200) 485026

27.3 Crankshaft 22 l/min (therm-RP 1400) 485027

27.4 Crankshaft 25 l/min (therm-RP 1600) 485035

29. Key 485028

30. Oil dipstick 485029

31. Radial shaft seal 485030

32.1 Spacer 0.1mm 485031

32.2 Spacer 0.05mm 485034

33. Housing cover open 485032

34. Oil cover seal 485049

35. O-ring 44254

36. Oil drain nipple 485043

37. Oil sight glass G3/4“ 48420

38. Hexagon socket screw 44831

40. Ceramic sleeve for plunger 485040

41. Connecting rod with plunger carrier 485041

42. Oil cap with seal and oil sight glass 485042

43. Oil drain hose 441282

44. Copper ring 41500

45. Cap 44130

50. Claw coupling 474300

Drive 16 l/min complete (therm-RP 1000) 474200

Drive 19 l/min complete (therm-RP 1200) 474210

Drive 22 l/min complete (therm-RP 1400) 474220

Drive 25 l/min complete (therm-RP 1600) 474230
