KRANZLE Therm-RP 1200, 1400, 1600 Automatic Hose Drum

KRANZLE Therm-RP 1200, 1400, 1600 Automatic Hose Drum

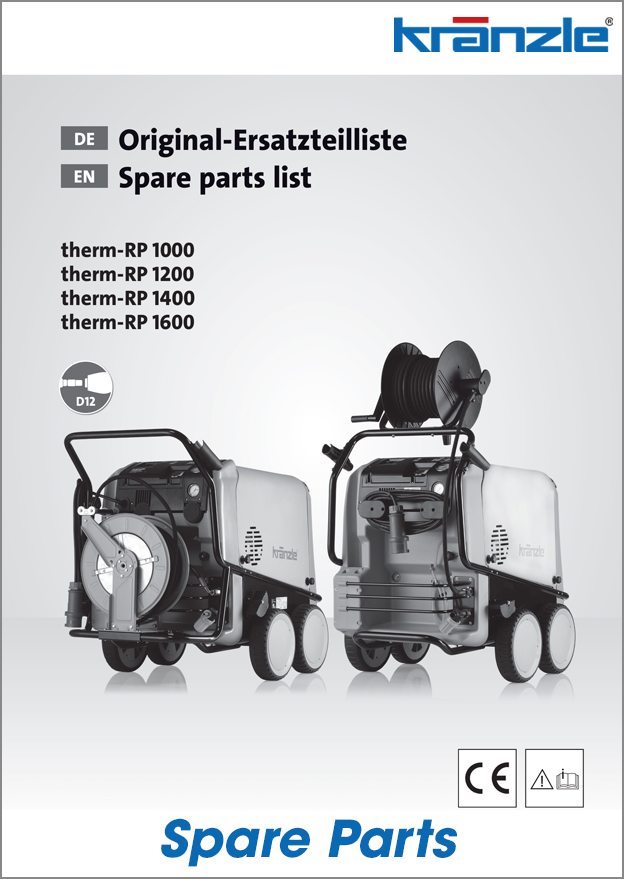

Genuine Spare Parts

See Diagram & Click the link for price & availability

1. Push bar for automatic hose reel 48909

2. Holding plate 48910

3. Automatic hose reel with 20m high-pressure hose 438502

4. Screw connection 13373

5. Ermeto screw connection R3/8“ AG x Ermeto 12mm 40076

6. High-pressure hose Ermeto 12mm x Ermeto 12mm 489081

8. Hexagon screw 401331

10. Cable winder 46507

11. Elastic stop nut 141521

12. Fastening clamp 48907

13. Hexagon screw 50173

14. Washer 50174

15. Hexagon screw 139161

17. Self-tapping screw 441613

18. Cover cap for cable winding 48911

19. Self-tapping screw 426471

20. Lance holder (only for therm with automatic reel) 401540

25. Connection hose device-automatic reel 48908

26. Retrofit kit for automatic hose reel 48950
Download Documents

Downloads for this product are currently unavailable, please get in contact if you require any documentation.
