KRANZLE Therm-RP 1200, 1400, 1600 Flow Safety Block

KRANZLE Therm-RP 1200, 1400, 1600 Flow Safety Block

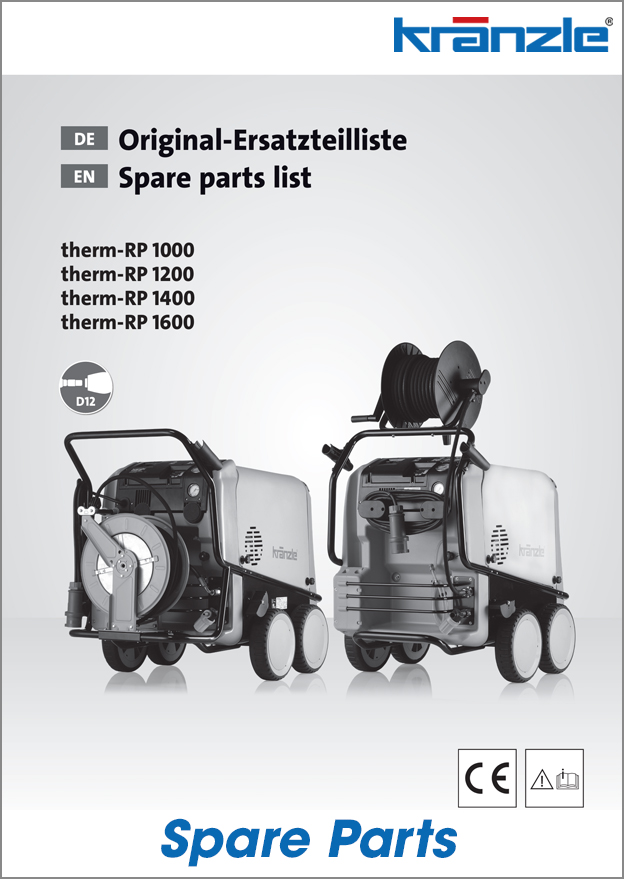

Genuine Spare Parts

See Diagram & Click the link for price & availability

1. Valve body 14215

3. Sealing plug 13158

4. Ermeto screw connection R 3/8" x 12mm pipe socket 44365

7. Plug 13387

9. Ermeto angle 44062

10. Dowel pin 14148

11. Control piston 14110

12. O-ring 13150

13. Piston guide 14130

14. Parbaks 16mm 13159

15. Parbaks 8mm 14123

16. Copper sealing ring 41500

17. Plug 14213

18. Hydraulic accumulator 44140

19. L-screw connection 44869

20. Connection sleeve for hydraulic accumulator 441401

21. Valve spring 14125

22. Spring pressure disc 14126

23. Hexagon nut 14144

24. O-ring 12256

25. Stainless steel seat 7.0mm 14118

26. Snap ring 13147

27. Stainless steel ball 10mm 12122

28. Stainless steel spring 14119

29. O'Ring 42167

30. Screw plug 14113

32. Hose clamp 44363

34. Angle nozzle 14212

35. HD hose inlet combustion chamber 44384

38. Flow body incl. plug and spring 142181

39. Pressure spring flow switch 14217

40. Stop plug with pin flow switch 14219

41. O-ring 43445

42. Flow body with pin for spring 14218

43. Cover 12603

44. Screw 44216

45. Screw connection 44364

46. Magnetic switch 405942

Control piston cpl. Pos. 10-15; 21-23 141101

Flow safety block complete. Items 1-15; 21-46 14235
