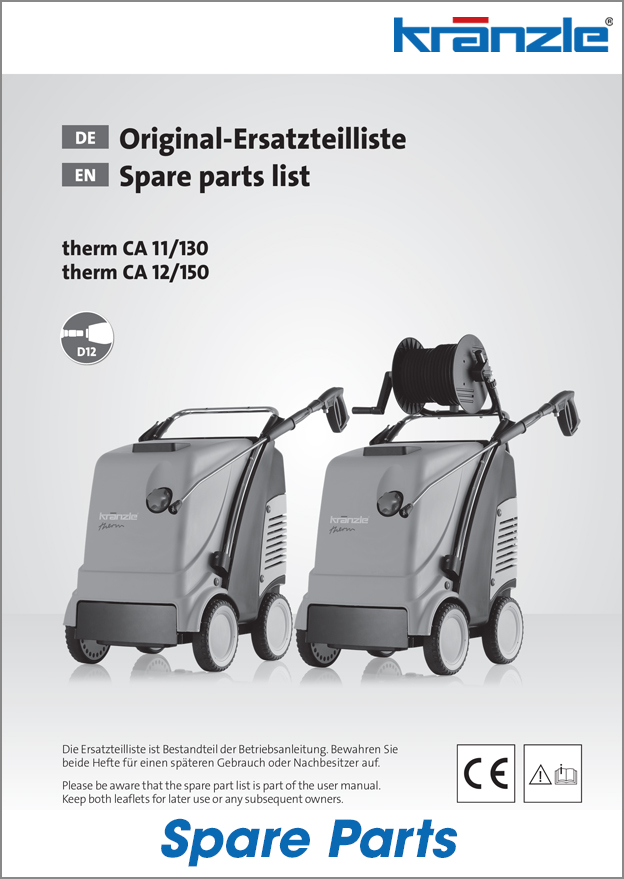

KRANZLE Therm CA 11/130 Motor
Genuine Spare Parts
See Diagram & Click the link for price & availability
2.1 Motor housing with stator alternating current 43826
2.2 Motor housing with stator three-phase current 43827
3. Rotor with motor shaft 43316
5. Engine bearing B-side 6205 - 2Z 43317
6. Engine bearing shoulder bearing 7304 41027
14.2 Cable with plug (CE-KON) 410921
16. Ground screw complete. 43038
18. Screw 40236
20. Rubber seal for switch spacer 411113
21. Lower part for switch spacer 411111
22. Round seal for switch spacer 411115
23. Upper part for switch spacer 411112
24. Flat gasket for switch spacer 411114
41.1 Motor alternating current 230V / 50Hz complete. without switch 43867
41.2 Motor three-phase 400V / 50Hz complete. without switch 43868
-
Download Documents
Downloads for this product are currently unavailable, please get in contact if you require any documentation.
