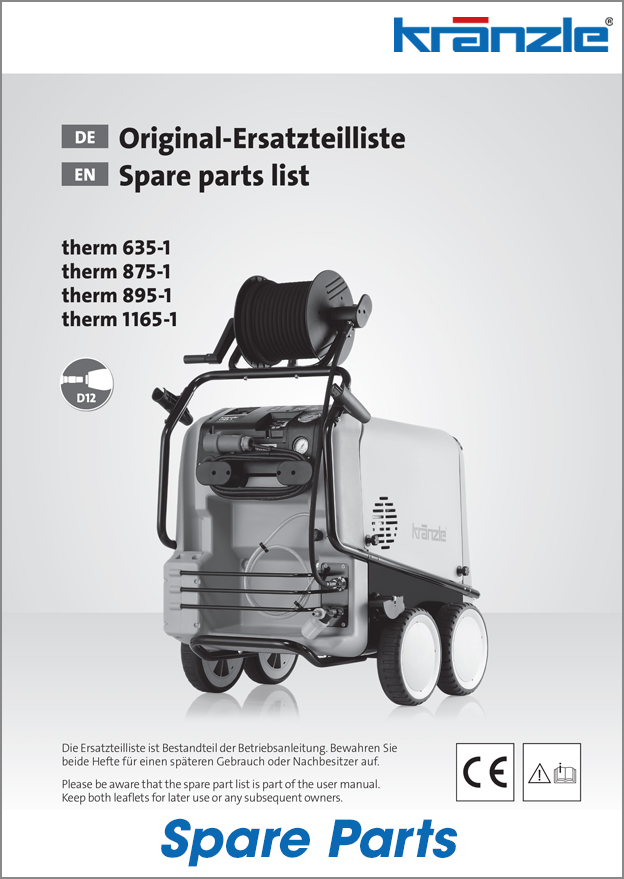

KRANZLE Therm 635-1, Therm 895-1, Therm 1165-1 Assembly

KRANZLE Therm 635-1, Therm 895-1, Therm 1165-1 Assembly

Seen it Cheaper?

KRANZLE Therm 635-1, Therm 895-1, Therm 1165-1 Assembly

Genuine Spare Parts

See Diagram & Click the link for price & availability

1. Cockpit 44351

2. Fuel tank 442680

3. Water tank 44009

5. Lance quiver 44008

6. Right hood 44032

7. Left hood 44031

8. Wheel 44017

9. Hubcap 44018

10. Brake pedal 44022

11. Brake lever 44023

12. Brake pad 44024

13. Fuel cap with O-ring 442700

14. Chassis 44001

15. Front bar 44002

16. Push bar 44003

17. Railing 440161

18. Top strut 44019

19. Starlock cap 20 mm 40142

20. O-ring 53.34 x 5.33 442710

21. Hex socket screw M 8 x 12 40122

22. Hex socket screw M 8 x 40 44033

23. Washer 8.4 DIN 9021 41409

24. Screw 3.9 x 16 12150

25. Pin 6 x 50 44035

26. Starlock cap 8 mm 44165

27. Carriage bolt M 8 x 35 41408

28. Fuel tank drain plug 440041

29. Pin 6 x 40 440351

30. Elastic stop nut M 8 41410

31. Gasket for drain plug 410471

32.1 Power cord with plug 8.0 m, 4 x 1.5 mm²

(therm 875-1, therm 895-1, therm 1165-1)

44036

32.2 Power cord with plug 5.75 m, 3 x 1.5 mm²

(therm 635-1) 41092 New P/No.43459

33. Plastic screw 6 x 30 434231

34. Fuel filter 442690

35. Washer 44034

36. Screw DIN912-A2 M8 x 20 41480

37. High-pressure hose NW 8 10 m 41081

37.1 High-pressure hose NW 8 20 m 443812

38. O-ring 9.3 x 2.4 Viton 132731

39. Starlet 3 12500

40.1 Lance with flat jet nozzle 25045

(therm 635-1, therm 875-1, therm 895-1) 12420-D25045

40.2 Lance with flat jet nozzle 2507

(therm 1165-1) 12420-D2507

41. Left lance holder for Kränzle therm 44412

42. Right lance holder for Kränzle therm 44411

43. Screw 4.8 x 25 13190

44. Hex socket screw M 8 x 12 40122
