KRANZLE Therm 895-1, Therm 1165-1 Unloader

Genuine Spare Parts

See Diagram & Click the link for price & availability

5. O-ring 16 x 2 13150

5.1 O-ring 13.94 x 2.62 42167

8. O-ring 11 x 1.44 12256

9. Stainless steel seat 14118

10. Retaining ring 12258 NEW P/No. 13147

11. Stainless steel ball 8.5 mm 13148

12. Stainless steel spring 14119

13. Sealing screw 14113

14. Control piston 14134

15. Parbaks 16 mm 13159

16. Parbaks 8 mm 14123

17. Tension pin 14148

18. Special piston guide 42105

19. Nut M 8 x 1 14144

20. Valve spring, black 14125

21. Spring pressure washer 14126

22. Needle bearing 14146

23. Handwheel 141472

25. Elastic stop nut 14152

26. Parbaks 7 mm 15013

27. Output part R3/8" male thread 15012

49. O-ring 3.3 x 2.4 12136

50. O-ring 5 x 1.5 15014

51. Guide part control plunger 490580

52. O-ring 12.3 x 2.4 15017

53. O-ring 14 x 2 43445

54. Parbaks 4 mm 121362

55. Support washer dm 5 15015

55.1 Support washer dm 4 150151

56. Stainless steel spring 1.8 x 9.1 x 18.5 15016

57. Control plunger long 150102

58. Parbaks 15013

59. Plug M10x1 (drilled through) 133851

60. Housing electrical switch (black) 15204

60.1 Housing electrical switch (red) 15205

61. Rubber sleeve 15202

63. Screw PG 11 15203

64. Cable 2 x 1.0 mm² 0.70 m black 44367

64.1 Cable 2 x 1.0 mm² 0.70 m grey 44368

65. Sheet metal screw 2.9 x 19 15024

66. Cover for electrical switch (black) 15201

66.1 Cover for electrical switch (red) 152011

67. O-ring 44 x 2.5 15023

68. Microswitch 44262 NEW P/No. 15018

69. Socket head cap screw M 4 x 20 15025

70. Hex nut M 4 12138

72. Compression spring 1 x 8.6 x 30 40520

73. Base unit of electrical switch 15009

74. Control piston 15010

80. Control piston complete with handwheel 44209

81. Repair kit pressure switch mechanism 150093

82. Pressure switch (red) without mechanism 443891

83. Valve housing complete without electrical switch 405037

84. Repair kit pressure switch mechanism 3/8" male thread 150112

85. Pressure switch (black) without mechanism 44389

86. Pressure switch (red) with mechanism (items. 81 + 82) 443892

87. Pressure switch (black) with mechanism (items. 84 + 85) 443893

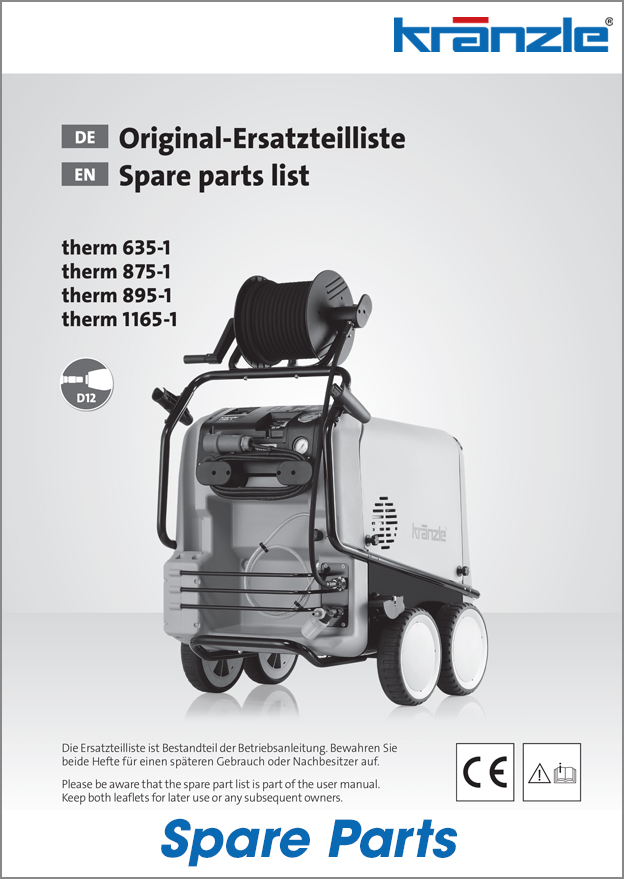

Download Documents
