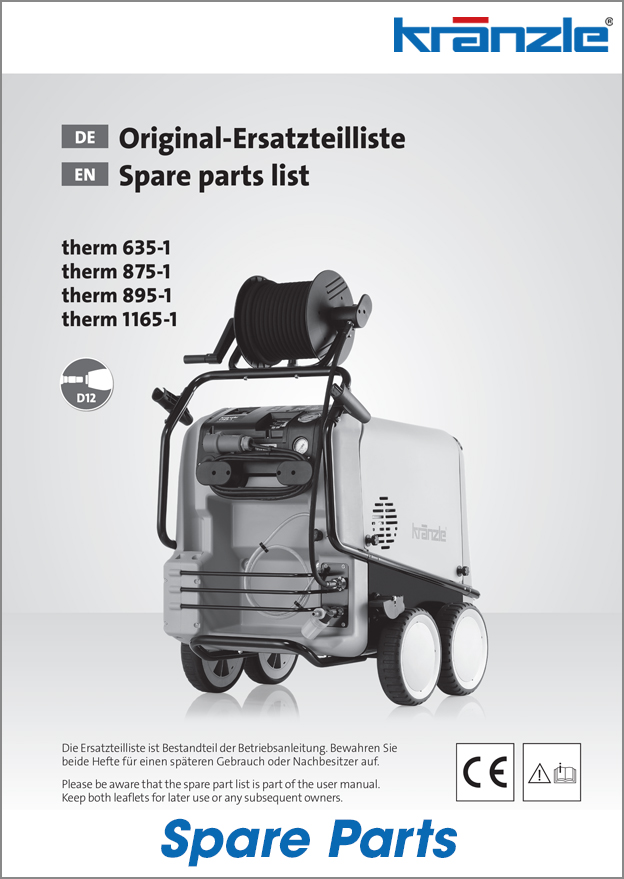

KRANZLE Therm 635-1, Therm 895-1, Therm 1165-1 Fire Box 1
Genuine Spare Parts
See Diagram & Click the link for price & availability
1. Bracket for ignition transformer with items 2 and 10 448211
2. Mounting bracket 44395
4. Screw M 5 x 50 44113
5. High-voltage ignition cable (2 pieces) 44114
7. Ring nut M 8 DIN 582 44115
8. Spring washer A 8 44222
9. Stainless steel nut M 8 141272
10. Mounting base for ignition cable 44369
11. Fuel line "nozzle assembly" 120 mm 44089
12. Elbow fitting 6L x 6L 44106
13. Fuel line pump 441081
14. Stainless steel screw M 6 x 10 44177
16. Sheet metal screw 6.3 x 13 44109
17. Washer A 10.5 DIN 9021 50182
18. Hex head screw M 10 x 20 DIN 933 44116
19. Pressure measuring line 441021
21. Blower housing 44353
22. Fan wheel 44380
23. Blower cover 44354
24. Burner motor 200-240 V / 50 Hz / 60 Hz 440726
25. Plug-in coupling (from 10/2021) 448522
27. Air damper 44355
32. Screw M 4 x 8 44216
33. Set screw M 6 x 8 DIN 914 44090
39. High-pressure hose, water outlet 44840
43. Screw-in elbow fitting 3/8" x 12L 44092
51. Locking ring 440861
52. Set screw M 6 x 8 DIN 914 44090
53. Sheet metal screw 4.8 x 9.5 44564
53.1 Sheet metal screw 4.8 x 13 44112
54. Over-temperature sensor 44388
55. Nut 44172
56. Washer 6.4 50174
57. Rotary knob for air slide 44358
59. Counter bearing for air adjustment 44356
60. Shaft for air adjustment 44382
61. Gear drive air slide 44357
82. Blower unit 44390
-
