KRANZLE Small Quadro 11/140 TST Hose Drum

KRANZLE Small Quadro 11/140 TST Hose Drum

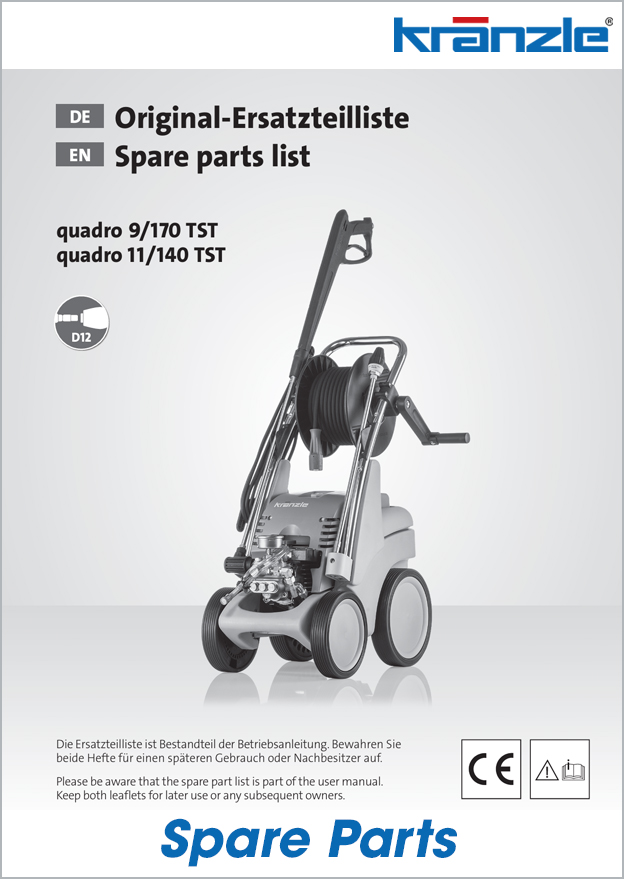

Genuine Spare Parts

See Diagram & Click the link for price & availability

1. Side shell 46201

3. Drum part 46202

5. Allen screw 40313

6. Bearing block with brake 403271

7. Bearing block left 403051

8. Clamping piece 403071

9. Screw 43018

10. Drive shaft 40328

11. Wave water flow 462032

12. Elastic Stop Nut M4 40111

13. Foldable hand crank 403200 (Discontinued)

13. Foldable hand crank 403201

15. Disc 40181

16. Shaft retaining ring 22 mm 40117

17. Shaft retaining ring 16 mm 40182

18. Disc Ø 6.4 50189

19. Locking disk 40325

20. Parbaks 16 mm 13159

22. Screw 43021

23. Swivel joint 40167

25. Spacer ring 40316

27. O-ring 41521

28. Connection piece 40308

33. O-ring 13386

34. Plugs 13385

40. Union nut 13276

42. O-ring 13273

44. Connecting hose, hose drum 46537

45. High pressure hose 15 m NW6 40170

Hose drum complete without hose 46581

consisting of items 1 - 34
