KRANZLE Small Quadro 11/140 TST Unloader

KRANZLE Small Quadro 11/140 TST Unloader

Seen it Cheaper?

KRANZLE Small Quadro 11/140 TST Unloader

Genuine Spare Parts

See Diagram & Click the link for price & availability

5. O-ring 13150

5.1 O-ring 42167

8. O-ring 12256

9. Stainless steel seat 14118

10. Circlip 13147

11. Stainless steel ball 8.5 mm 13148

12. Stainless steel spring 14119

13. Screw plug 14113

14. Control piston 14134

15. Parbaks 16 mm 13159

16. Parbaks 8 mm 14123

17. Roll pin 14148

18. Piston guide special 42105

19. Nut 14144

20. Valve spring black 14125

21. Spring pressure washer 14126

22. Needle bearings 14146

23. Handwheel 40457

24. Cap handwheel 40458

25. Elastic Stop Nut 14152

26. Pressure gauges 0-250 bar 15039

27. Aluminum sealing ring 13275

50. O-ring 12136

51. Guide part control tappet 490580

52. O-ring 15017

53. O-ring 43445

54. Parbaks 121362

55. Support disk 150151

57. Control plungers long 150102

58. Parbaks 10 mm 15013

59. Plug 133851

60. Housing electrical switch 15204

61. Rubber sleeve 15202

63. Union nut 15203

64. cables 46515

65. Screw 15024

66. Cover electrical switch 15201

67. O-ring 15023

68. Micro switches 15018

69. Cylinder screw 15025

70. Hexagon nut 12138

72. Compression spring 40520

75. Rep. set pressure switch mechanism 150093

76. Control pistons complete with handwheel 40490

77. Pressure switch complete 425940

78. Valve housing 15 mm complete (quadro 9/170) 46590

78.1 Valve housing 18 mm complete (quadro 11/140) 46591

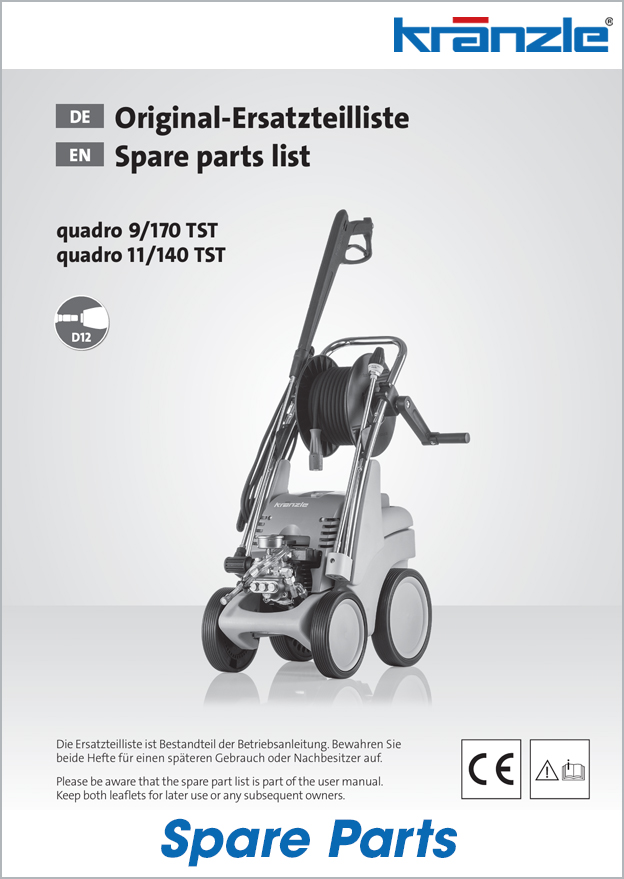

Download Documents
