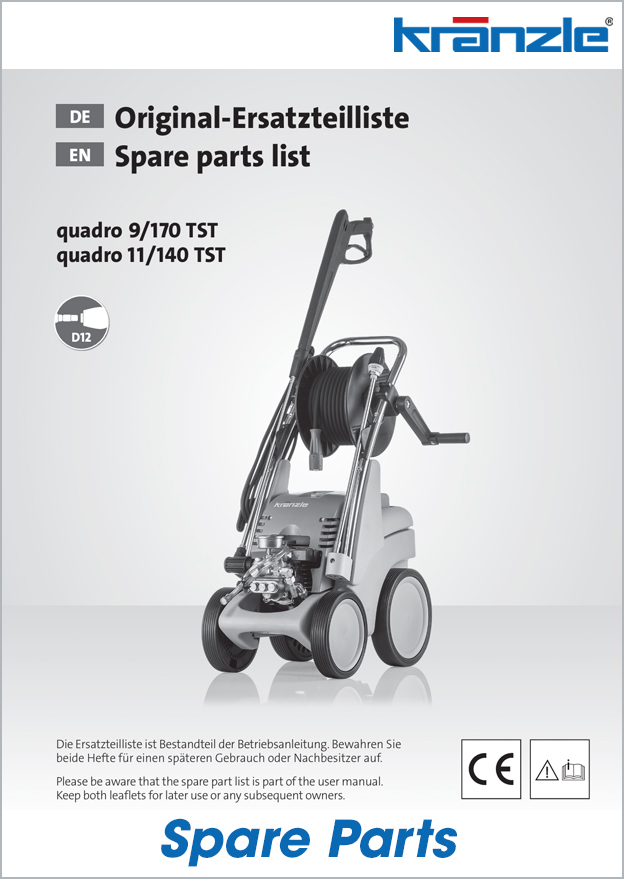

KRANZLE Small Quadro 11/140 TST Transmission
Genuine Spare Parts
See Diagram & Click the link for price & availability
1. Housing plate for 18 mm plunger 410202
3. O-ring 410211
4. Plunger spring 41033
5. Spring pressure washer 18 mm 41034
6. Plungers 18 mm 410321
8. Swashplate 12.5° (quadro 11/140 TST) 41028-12.5
10. Axial deep groove ball bearings, 3 pieces 43486
12. Allen screw 410363
14. O-ring 43445
15. Seal for cover 46531
16. Cover for oil housing 46532
18. Oil dipstick 46546
20. Oil drain plugs M18x1.5 with magnet 48020
Drive AP 18mm cpl. for quadro 11/140 46589-12.5
consisting of: Items 1-18
-
Download Documents
Downloads for this product are currently unavailable, please get in contact if you require any documentation.
