KRANZLE Small Quadro 11/140 TST Motor

KRANZLE Small Quadro 11/140 TST Motor

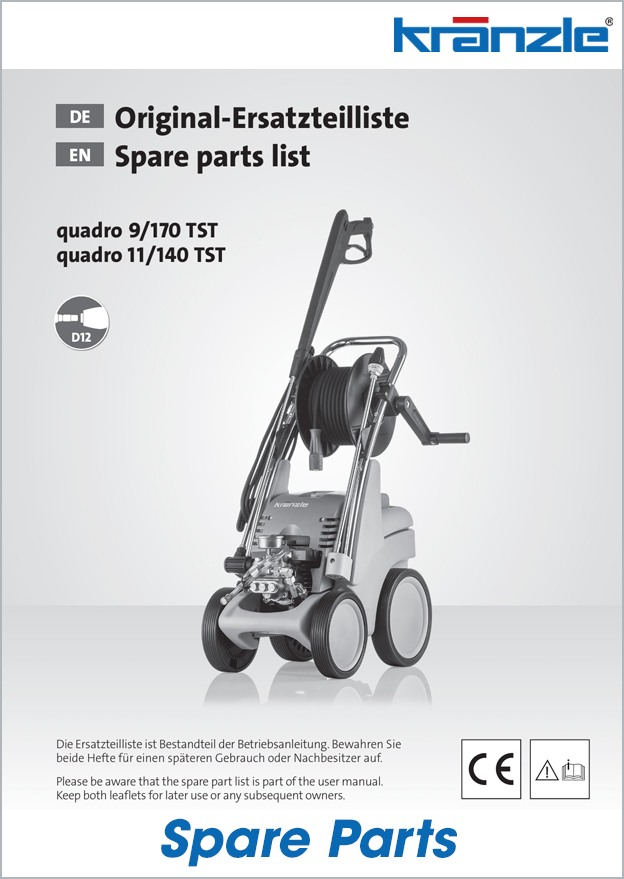

Genuine Spare Parts

See Diagram & Click the link for price & availability

1. Oil housing for AP with cover and seal 465301

2. Motor housing with stator alternating current 43826

3. Rotor with motor shaft 43316

4. Key 414831

5. Engine bearing B-side 43317

6. Engine bearing shoulder bearing 41027

8. Oil seal 41024

9. Fan wheel BG 90 411181

10. Fan cover BG 90 43320

18. Screw 414891

19. Cable with plug 41092

23. Allen screw 43037

24. Ground screw 43038

25. Screw 41489

27. Screw 414141

28. Screw 414892

29. Luster terminal 2-pole 433263

31. Switch box lower part 46012

32. Switch box cover 46013

33. Switches with illuminated Rocker 411117

34. Clamp frame with switch seal 43453

36. Screw 44525

37. PG 16 screw connection 414191

38. Gasket for switch box cover 460131

39. Lock nut for PG9 screw connection 410871

40. Lock nut for PG16 screw connection 44119

41. PG 9 - screw connection 42541

42. Capacitor 70μF 43322

50. Rubber seal for switch spacer 411113

51. Lower part for switch spacer 411111

52. Round seal for switch spacer 411115

53. Upper part for switch spacer 411112

54. Flat gasket for switch spacer 411114

60. Switch box complete (Items 27 - 54) 46585

61. Engine cpl. without switch (Items 1 - 26) 46586
