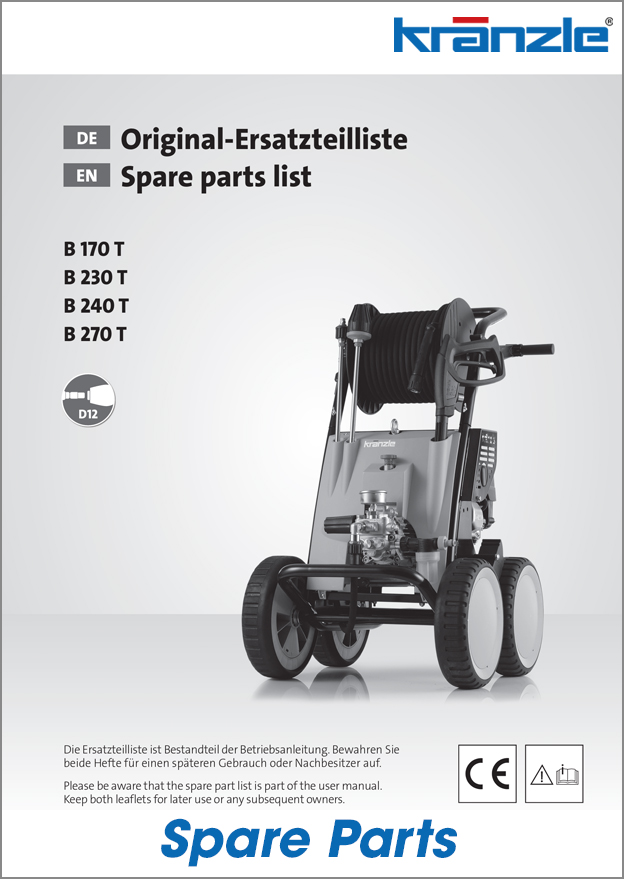

KRANZLE B 170, B 230, B 240, B 270 T Hose Drum
Genuine Spare Parts
See Diagram & Click the link for price & availability
1. Side shell hose guide 40302
2. Side shell water supply 40301
3. Drum lower part 40304
4. Drum upper part 40303
5. Allen screw 40236
6. Bearing block with brake 40327
7. Bearing block left 40305
8. Clamping piece 40307
9. Screw 43018
10. Drive shaft 40328
11. Wave water flow 40311
13. Hand crank 403200
16. Shaft retaining ring 22 mm 40117
17 Shaft retaining ring 16 mm 40182
18. Washer Ø 6.4 50189
19. Locking disk 40325
24. Connecting part 403081
27. O-ring 41521
33. O-ring 13386
42. O-ring 13273
45. High pressure hose 20 m NW 8 41083
Hose drum complete without hose 412590
Hose drum complete with hose 412591
-
Download Documents
Downloads for this product are currently unavailable, please get in contact if you require any documentation.
