KRANZLE B 170 T Assembly

KRANZLE B 170 T Assembly

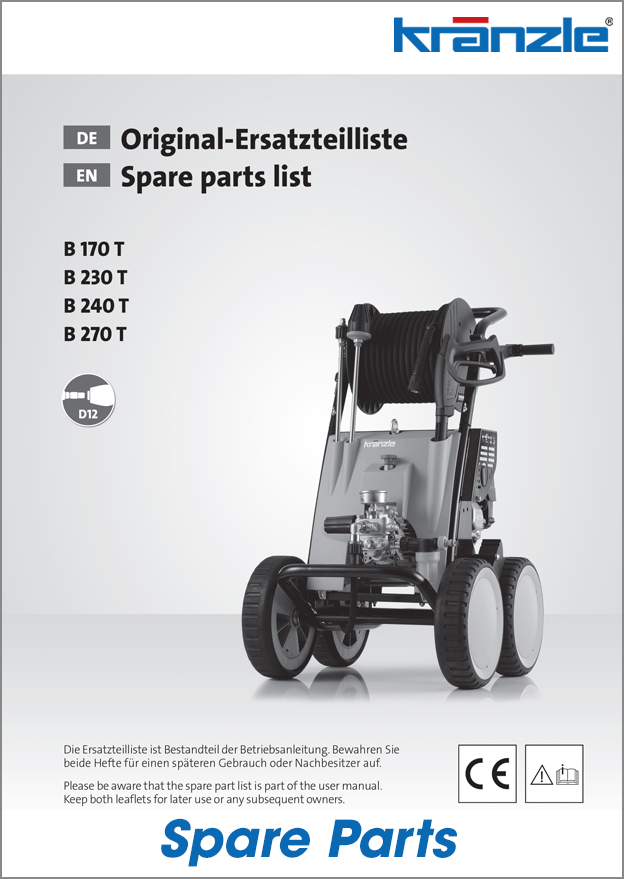

Genuine Spare Parts

See Diagram & Click the link for price & availability

1. Engine Honda GX 160 LX2 for B170 T 24027

2. Wagons 40230

3. Push bars 48704

4. Brake lever 40246

6. Front panel B170 T 402311

7. Screw 44112

8. Quivers large 40232

9. Screw 43426

10. Quivers small 40233

11. Wheel 44017

12. Axle clamping ring 20 mm 40142

13. Hub cap 44018

14. Pin 440351

15. Screw 42647

16. Brake pedal 44022

17. Brake block 44024

18. Brake lever 44023

19. Starlock cap 8 mm 44165

20. Cover B170 T 40234

21. Allen screw 40236

22. Disc 43472

23. Elastic - Stop nut 40111

24. Screw 43421

25. Spring washer 442221

28. Spacer sleeve 40237

29. Elastic - Stop Nut 141521

30. Disc 50189

31. Rubber buffer 40220

32. Screw 40221

33. Elastic - Stop nut 41410

34. Disc 50186

35. Intermediate plate 40239

36. Screw 40140

37. Spring washer 44222

40. Starlet 3 12500

41. Lance with control nozzle 2005 for B170 T 12431-M2005

42. Turbokiller 05 on B170 T 12430-05

43. High pressure hose 1m / DN 8 41265

44. High pressure hose NW8 20m 41083

45. Hose reel complete. with 1m HD hose, however

without 20m HD hose 412591

46. Lance holder 42645
