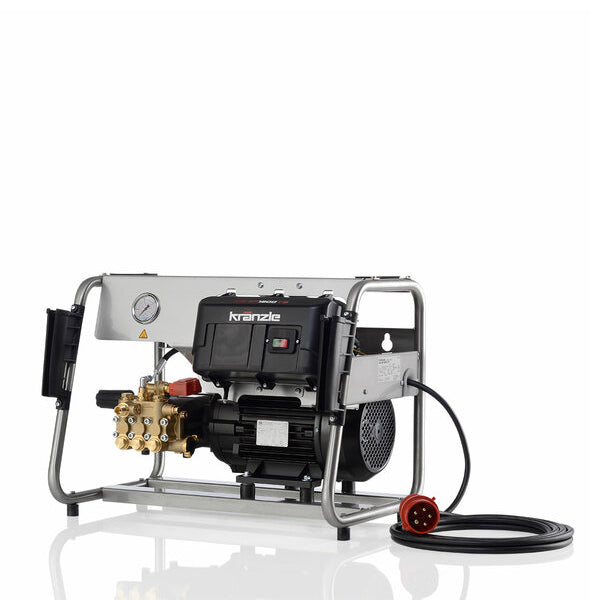

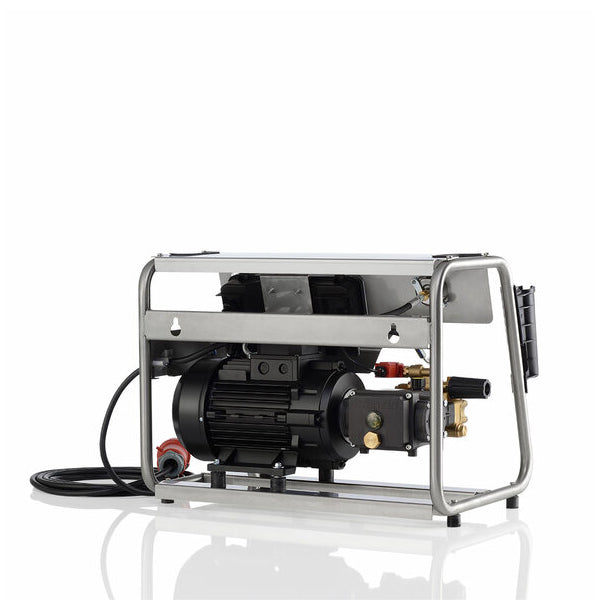

KRANZLE WS RP 1400 TS

£2,859.99
Seen it Cheaper?
  • KRANZLE WS RP 1400 TS Pressure Cleaner order no. 4131600

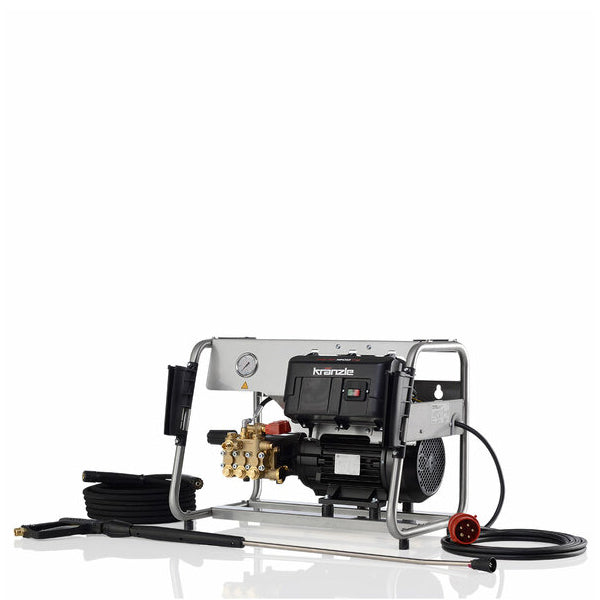

    With 22 litres per minute flow-rate and a continuously adjustable working pressure of up to 180 bar, a stainless steel housing permits for convenient use as a free standing unit or for easily installing for using as a wall-mounted device. Supplied with a stainless steel pressure gauge and TS (total-stop) system as standard, along with a 10 metre high-pressure hose, quick-release trigger gun and lance equipment.
    Suitable for installing into existing piping around a factory, or for professional forecourt use.

    Optional Cabinet Kit: includes all Connections, Fittings & Hoses



    Features & Benefits

    NEW: Kranzle In-line piston pump with integrated unloader valve and pressure switch

    Total-stop-system with delayed motor cut-off, improves seal life-span and reduces power consumption

    Pressure regulation, allows operating pressures to be set to suit any task

    Quick-release fittings, for simple and quick lance changes

    7.5 m power lead

    Cover of stainless steel

    Storage for trigger gun with safety catch and lance



    Alternative part numbers :- 4131600, 413160.0, 41.316.0

  • Technical Data:

    Operating pressure adjustable bar / MPa: 30-170 / 3-17

    Max. admissible overpressure bar / MPa: 200 / 20

    Connected load, V / ~ / Hz / A: 400 / 3 / 50 / 14.4

    Motor speed Rpm: 1440

    Water output l/min & l/h: 23.3 / 1400

    Power intake / Power output kW: 8.0 / 6.3

    Dimensions (L x W x H) mm: 670 x 430 x 510

    Weight (kg): 62


    Equipment:

    Steel braided high-pressure hose (m) 10

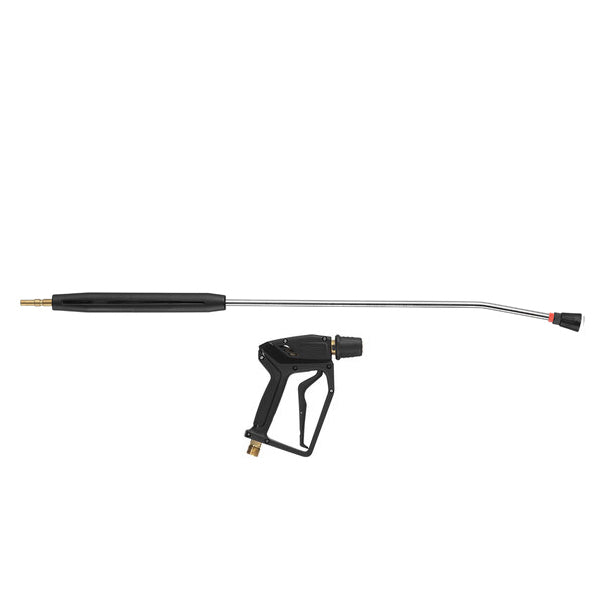

    Trigger gun with safety catch (model) Starlet

    Stainless steel lance with flat jet nozzle (nozzle size) 08
