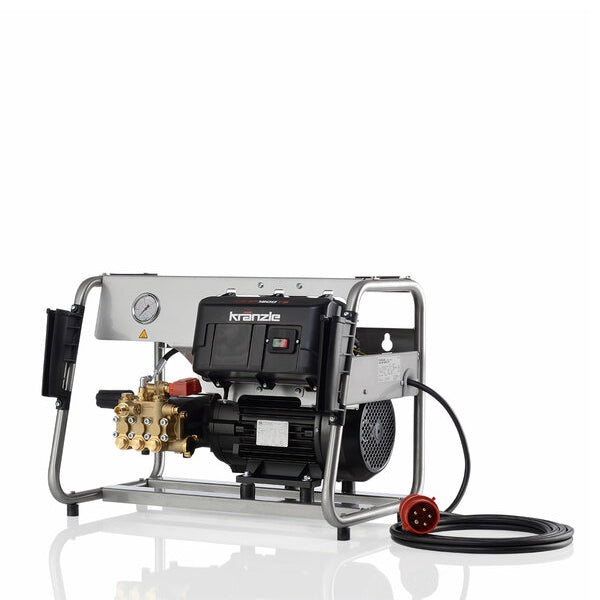

KRANZLE WS RP 1000 TS Pressure Cleaner order no. 4131400
Product Update: New Starlet Guns have replaced the old M2000 Guns

With 16 litres per minute flow-rate and a continuously adjustable working pressure of up to 200 bar, a stainless steel housing permits for convenient use as a free-standing unit or for easily installing for using as a wall-mounted device. Supplied with a stainless steel pressure gauge and TS (total-stop) system as standard, along with a 10 metre high-pressure hose, quick-release trigger gun and lance equipment.
Suitable for installing into existing piping around a factory, or for professional forecourt use.Optional Cabinet Kit: includes all Connections, Fittings & Hoses
Features & Benefits
NEW: Kranzle In-line piston pump with integrated unloader valve and pressure switch
Total-stop-system with delayed motor cut-off, improves seal life-span and reduces power consumption
Pressure regulation, allows operating pressures to be set to suit any task
Quick-release fittings, for simple and quick lance changes
7.5 m power lead
Cover of stainless steel
Storage for trigger gun with safety catch and lance

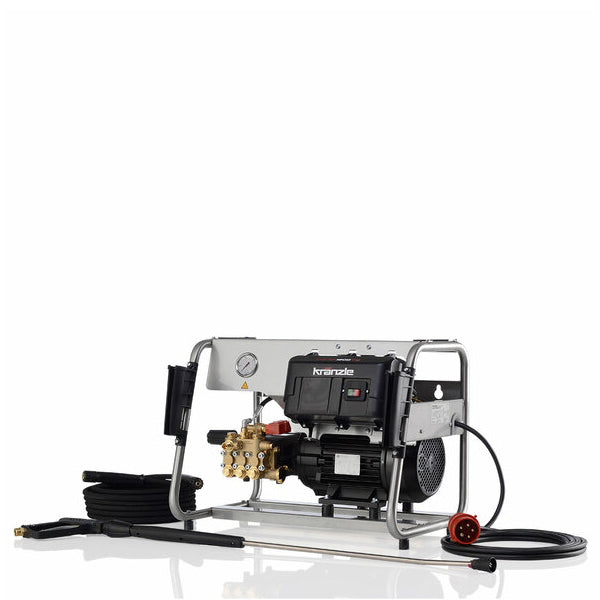

Included With Machine:
High Pressure Hose (m) 10

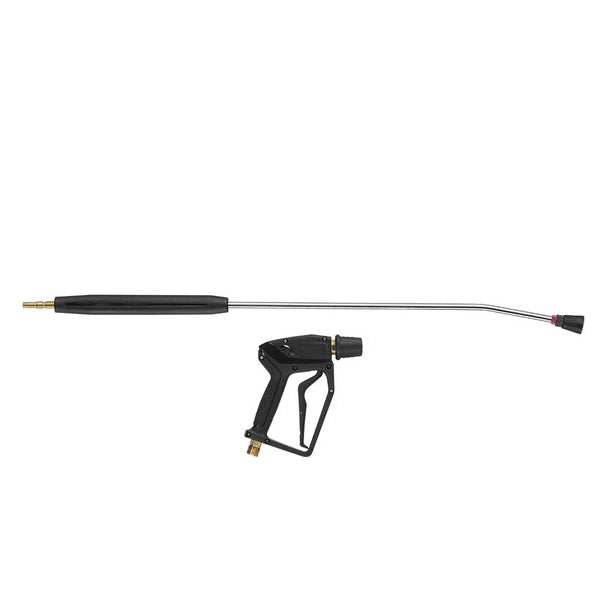

Starlet 3 Trigger Gun
Lance with Flat-jet Nozzle
Alternative part numbers :- 4131400, 413140.0, 41.314.0
Ord. no.
4131400
Operating pressure
bar
30-200
Operating pressure
MPa
3-20
Water output
l/h
1000
Admissible overpressure
bar
220
Admissible overpressure
MPa
22
Motor speed
U/min
1400
Connection Voltage
V
400
Connection Phase
~
3
Connection Frequency
Hz
50
Connection Amperage
A
12,5
Power intake
kW
7,5
Power output
kW
5,5
Power supply cable Length
m
7.5
Length
mm
670
Width
mm
430
Height
mm
510
Weight
kg
62
-
Download Documents
