KRANZLE Therm-RP 1200

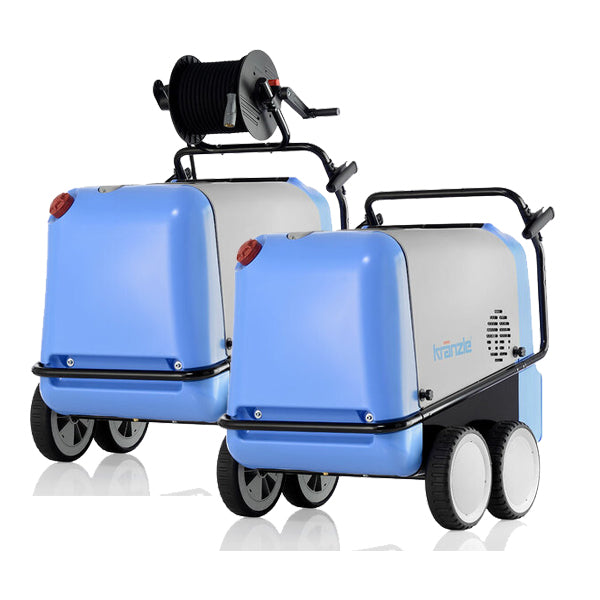

KRANZLE Therm-RP 1200 Pressure Cleaner order no. 638400 - with 20m hose reel 638410

Product Update: New Starlet Guns have replaced the old M2000 Guns

The Kranzle RP- in-line piston pump allows for higher water flow rates.

Features & Benefits

NEW: Kranzle In-line piston pump with integrated unloader valve and pressure switch

Pressure regulation, allows operating pressures to be set to suit any task

Quick-release fittings, for simple and quick lance changes

Digital operating panel, to control the water temperature

Total-stop-system with delayed motor cut-off, improves seal life-span and reduces power consumption

Smart storage system, practical stowing of the trigger gun with safety catch and lances

7.5 m power lead with cable reel

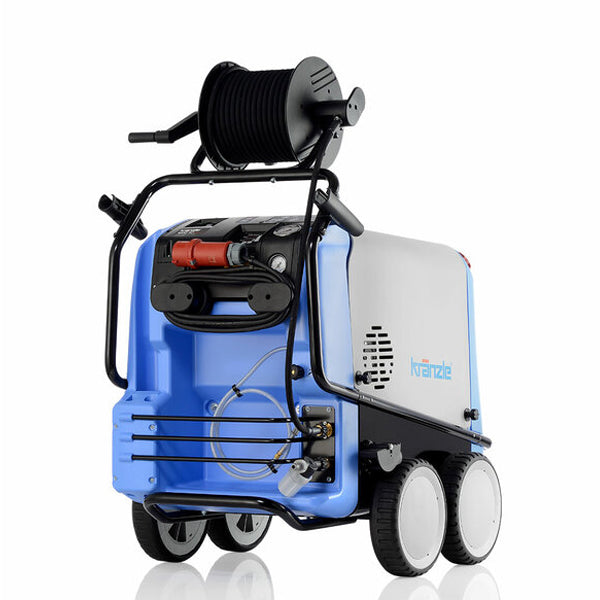

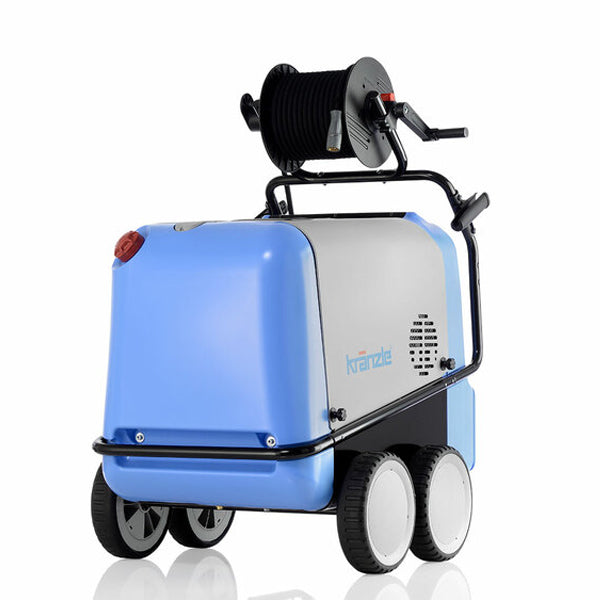

With or without 20m hose reel

Included With Machine:

High Pressure Hose (m) 10 (without hose reel)

High Pressure Hose (m) 20 (with hose reel)

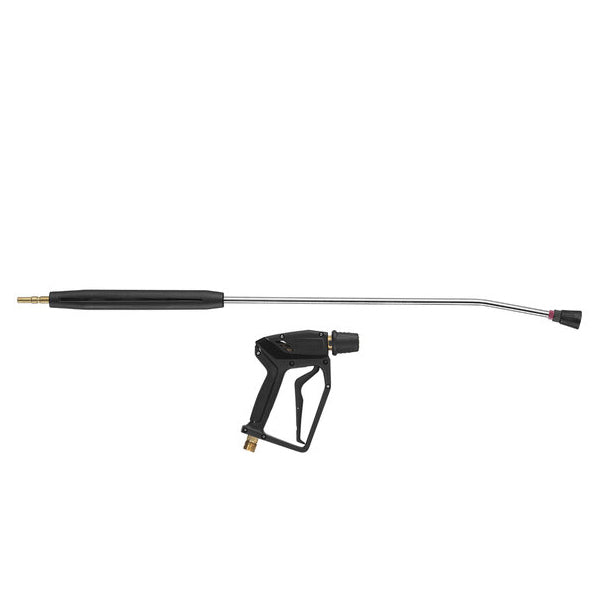

Starlet 3 Trigger Gun

Lance with Flat-jet Nozzle

Water inlet filter

Alternative part numbers :- 638400, 638400.0, 63.400.0, 638410, 638410.0, 63.410.0

Ord. no.		638400	638410
Operating pressure	bar	70-190	70-190
Operating pressure	MPa	7-19	7-19
Water output	l/h	1200	1200
Admissible overpressure	bar	210	210
Admissible overpressure	MPa	21	21
Motor speed	U/min	1400	1400
Connection Voltage	V	400	400
Connection Phase	~	3	3
Connection Frequency	Hz	50	50
Connection Amperage	A	13,5	13,5
Power intake	kW	8	8
Power output	kW	6,3	6,3
Power supply cable Length	m	7.5	7.5
Length	mm	1050	1050
Width	mm	800	800
Height	mm	1015	1300
Hot water output	°C	12-80	12-80
Steam level	°C	140	140
Oil consumption at max. heating output	kg/h	7.7	7.7
Oil consumption at max. heating output	l/h	9,2	9,2
Oil consumption T45	kg/h	5.6	5.6
Oil consumption T45	l/h	6.6	6.6
Heating output	kW	84	84
Weight	kg	210	218
