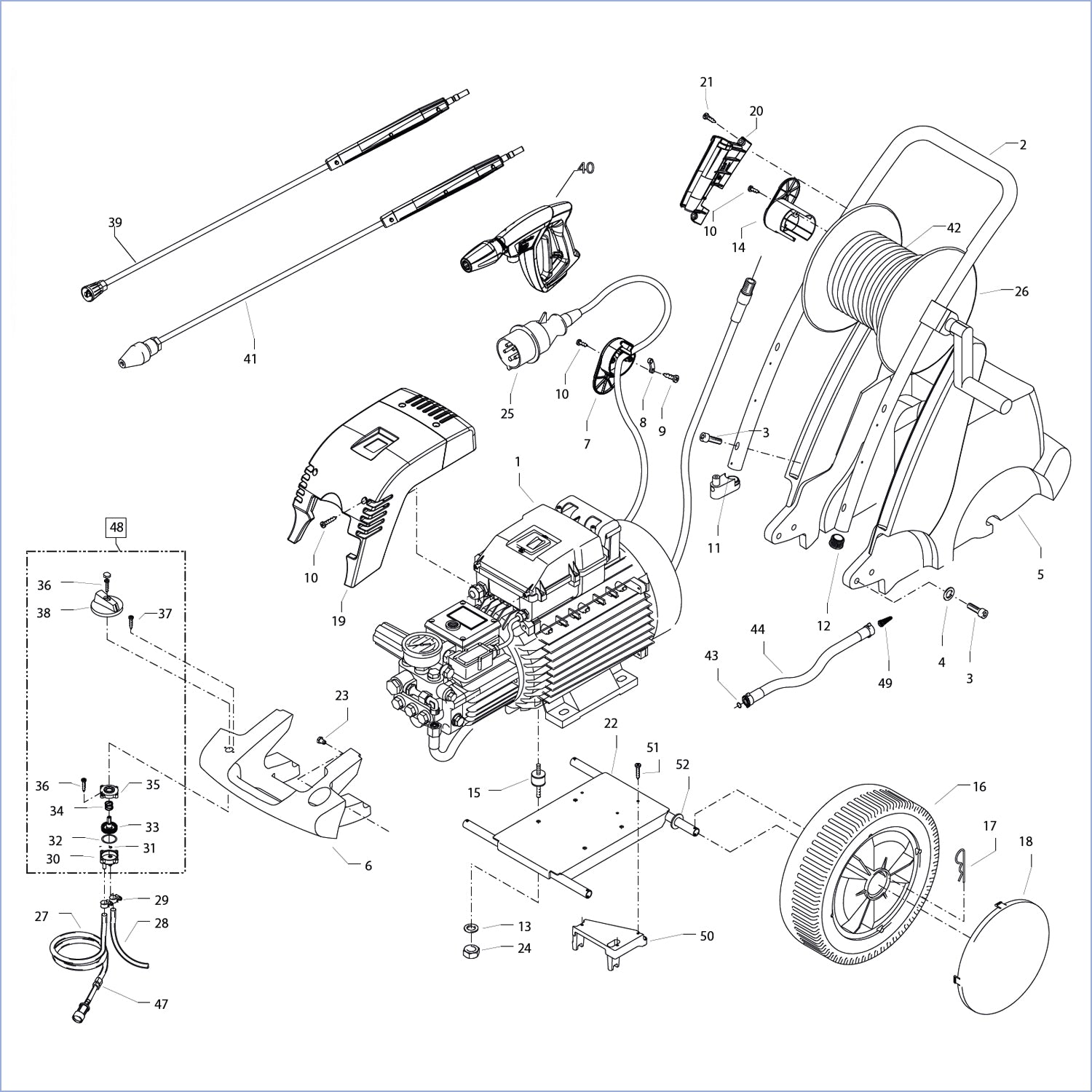

KRANZLE Medium Quadro 599/799/899 TST Assembly
Genuine Spare Parts
See Diagram & Click the link for price & availability
Motor pump without electrics
1.1 for quadro 599 TST 460851
1.2 for quadro 799 TST 460852
1.3 for quadro 899 TST 460853
Motor pump with electrics
1.4 for quadro 599 TST 460861
1.5 for quadro 799 TST 460862
1.6 for quadro 899 TST 460863
2. Push bars 46033
3. Screw 46024
4. Disc 50189
5. Water tank 46026
6. Lance rack 46028
7. Cable storage at the bottom 42611
8. Strain relief 43431
9. Screw 44525
10. Screw 414141
11. Lance stand 46021
12. Pipe plugs 46022
13. Disc 50186
14. Cable storage at the top 42612
16. Wheel d250 46010
17. Spring pin 401151
18. Hubcap 46011
19.1 Front panel quadro 599 TST 460141
19.2 Front panel quadro 799 TST 460142
19.3 Front panel quadro 899 TST 40143
20. Lance holders 42645
21. Screw 13190
22. Chassis including items 50, 51, 52 46001
23. Sleeve nut M6 46029
24. Elastic Stop Nut M8 41410
25. Power connection cable 5.75m 41092
Alternating current (quadro 599 TST)
25.1 Mains connection cable 8m 44036
26. Hose reel complete. 46081
27. Chemical suction hose (fabric) with filter 42621
28. Fabric hose 0.4m 42622
29. Hose clamp 440545
30. Housing detergent valve 44145
31. O-ring 44150
32. O-ring 44149
33. Regulating piston chemical valve 44147
34. Stainless steel spring 44148
35. Cover for chemical valve 44146
36. Screw 41078
37. Screw 44162
38. Rotary handle chemical valve with cover cap 44151
39.1 Lance with flat jet nozzle for 599 TST 12420-D25035
39.2 Lance with flat jet nozzle for 799 TST 12420-D25045
39.3 Lance with flat jet nozzle for 899 TST 12420-D2506
40. Pistol M2000 12492
41.1 Dirt Killer 035 for quadro 599 TST 12425-035
41.2 Dirt killer 045 for quadro 799 TST 12425-045
41.3 Dirt Killer 06 on quadro 899 TST 12425-06
42. High pressure hose 20 m NW6 434161
quadro 599, 799 TST
42.1 High pressure hose 15 m NW8 44879
quadro 899 TST
43. O-ring 13272
44. Connecting hose 46032
47. Check valve for chemical suction hose. 44240
48. Chemical valve complete item 30-37 44052
50. Mount brake 46042
51. Screw 43018
52. Disc 19 mm 43830
-
Download Documents
Downloads for this product are currently unavailable, please get in contact if you require any documentation.
