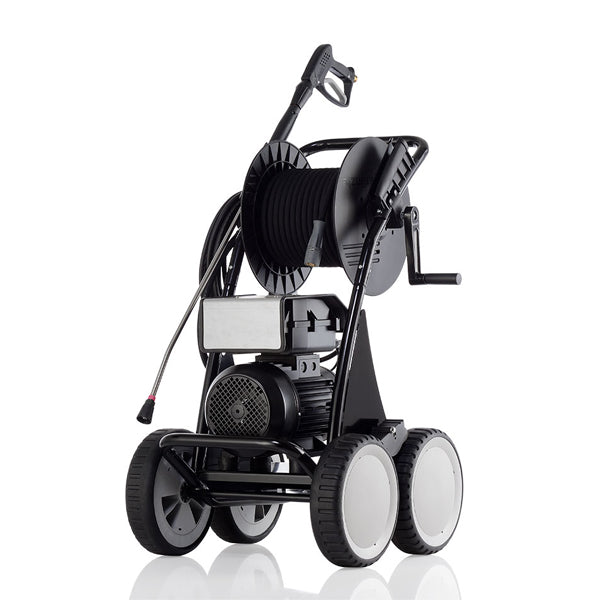

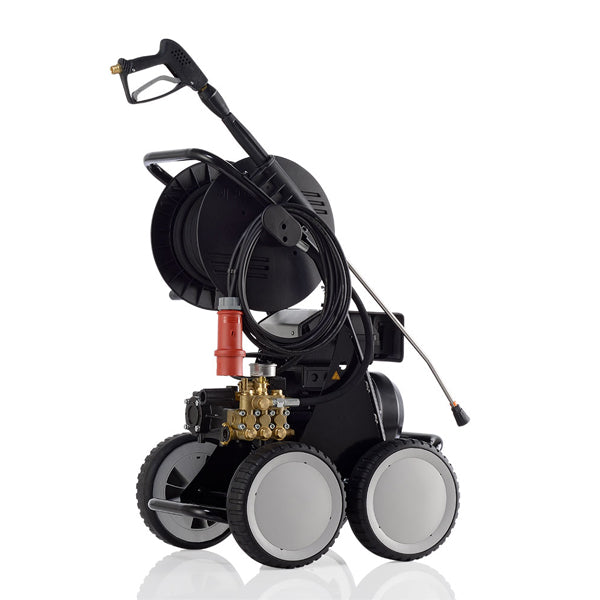

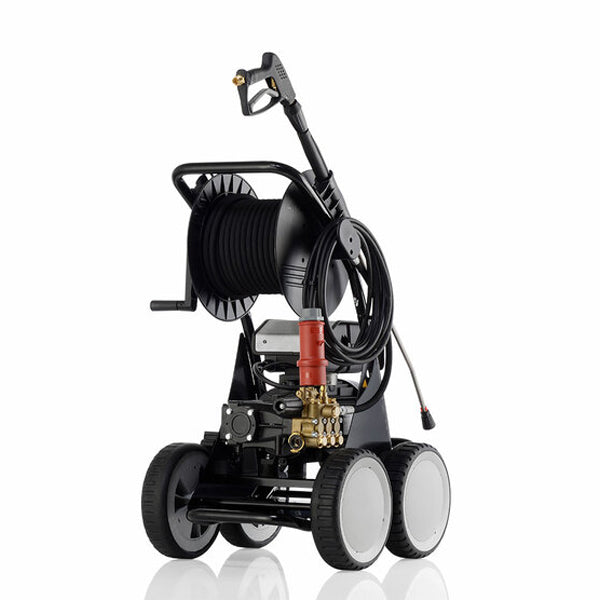

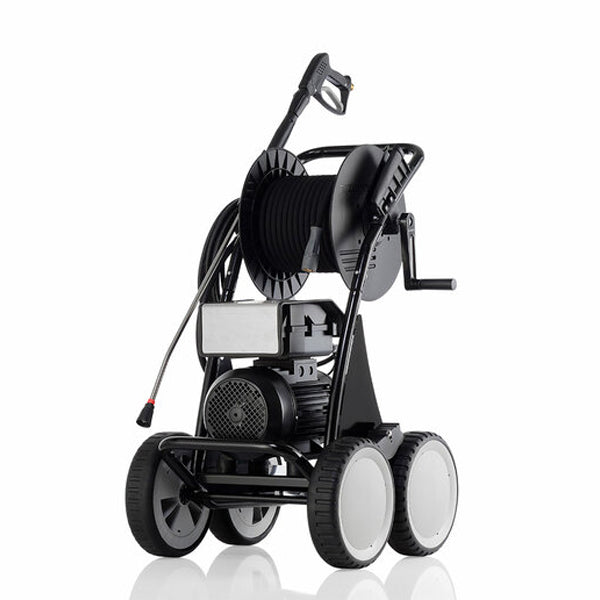

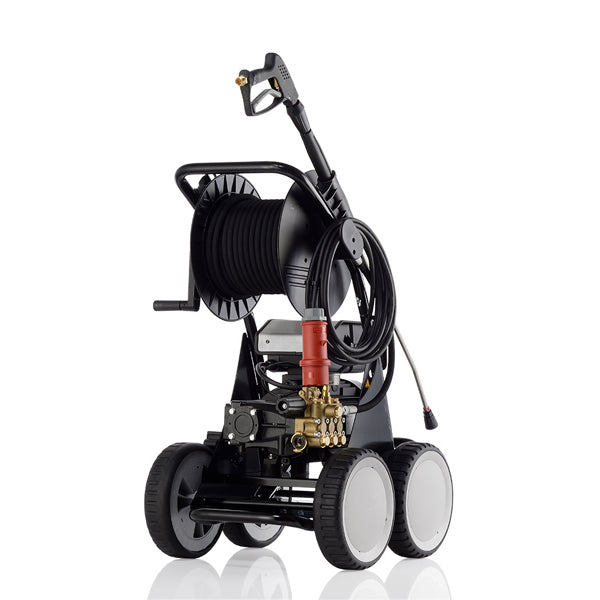

KRANZLE LX-RP 1400 TST (High Water Flow)(415v)

Regular price £3,552.00 £3,179.00
  • KRANZLE LX-RP 1400 TST (High Water Flow)(415v) order no. 409000

    The Kranzle LX series was developed to offer very high water flow rates which is possible with the new Kranzle RP in-line crankshaft transmission system.

    Built to order! Approximate lead time: 3-5 weeks

    Features & Benefits:

    NEW: Kranzle In-line Piston Pump with integrated unloader valve and pressure switch

    Total-stop-system with delayed motor cut-off improves seal life-span and reduces power consumption

    Pressure regulation, allows operating pressures to be set to suit any task

    Quick-release fittings, for simple and quick lance changes

    Neat arrangement system

    Trigger gun with safety catch Starlet

    Integrated hose drum incl. 20 m high-pressure hose

    Stainless steel lance with a spray nozzle

    Quiet and durable electric induction motor (1,400 rpm)Advanced water inlet suction/priming design

    Locking brake

    7.5 m power lead with plug with cable reel



    Alternative part numbers :- 409000, 40.900 0

  • Technical Data:

    Operating pressure adjustable bar / MPa: 30-170 / 3-17

    Max. admissible overpressure bar / MPa: 190 / 19

    Connected load, V / ~ / Hz / A: 400 / 3 / 50 / 14.3

    Motor speed Rpm: 1400

    Water output l/min & l/h: 23.3 / 1400

    Power intake / Power output kW: 8.0 / 6.3

    Power supply cable, m: 7.5

    Dimensions (L x W x H) mm: 735 x 580 x 1020

    Weight (kg): 100



    Equipment:

    Steel braided high-pressure hose (m) 20 on hose reel

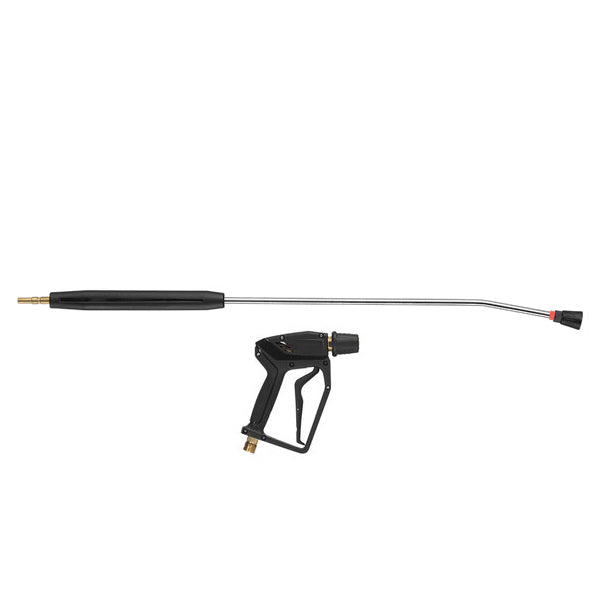

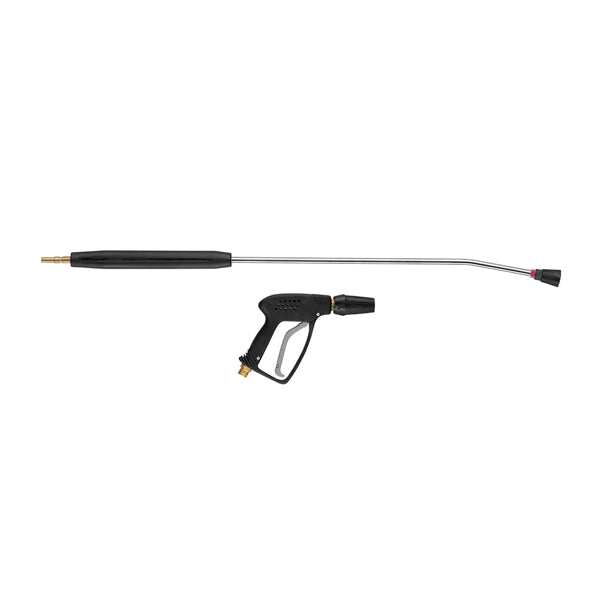

    Trigger gun with safety catch (model) Starlet Quick Release

    Stainless steel lance with flat jet nozzle (nozzle size) D4008

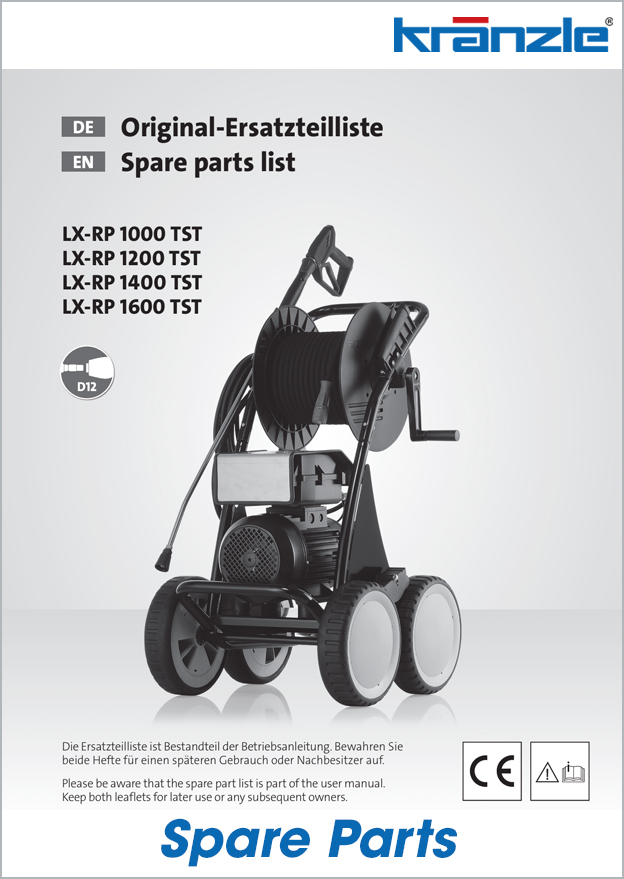

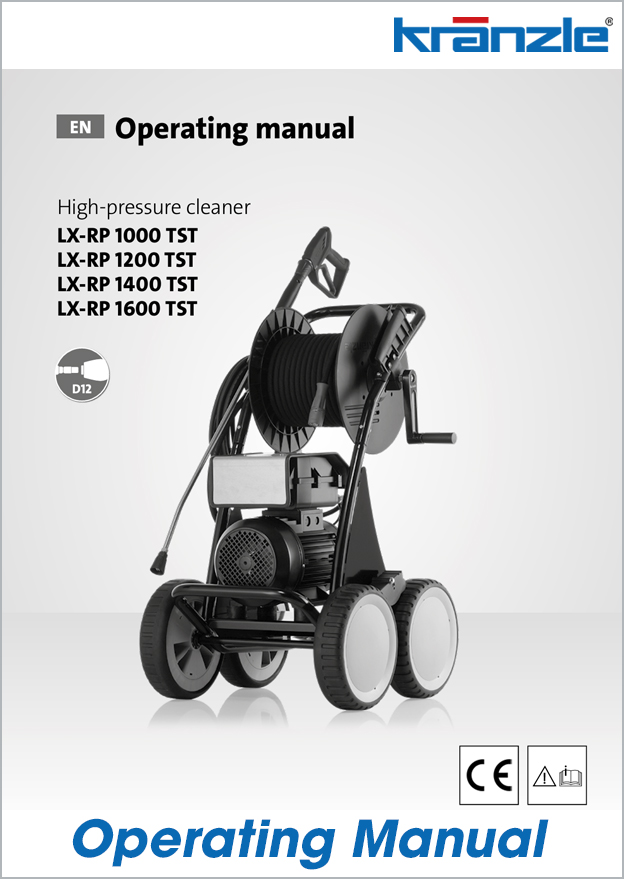

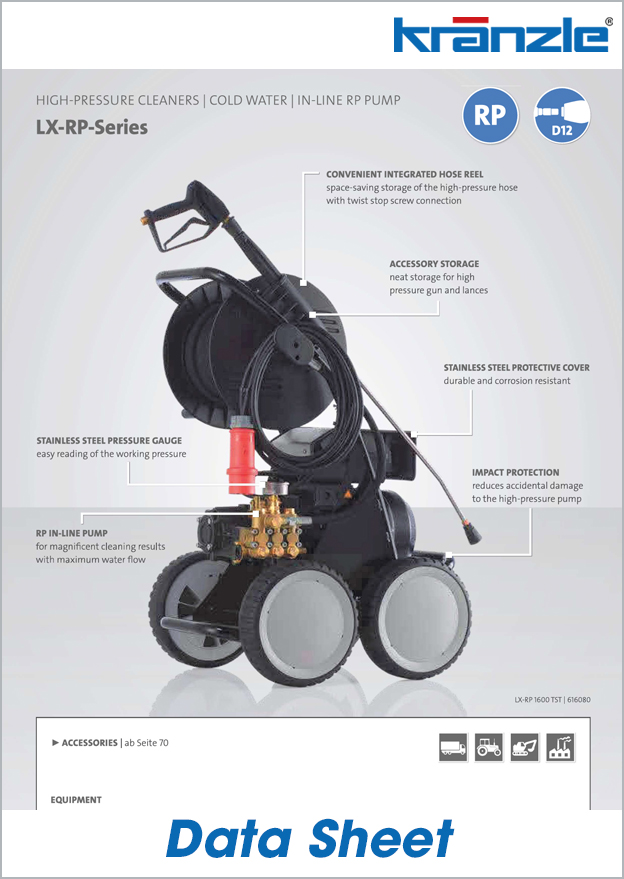

  • Download Documents
