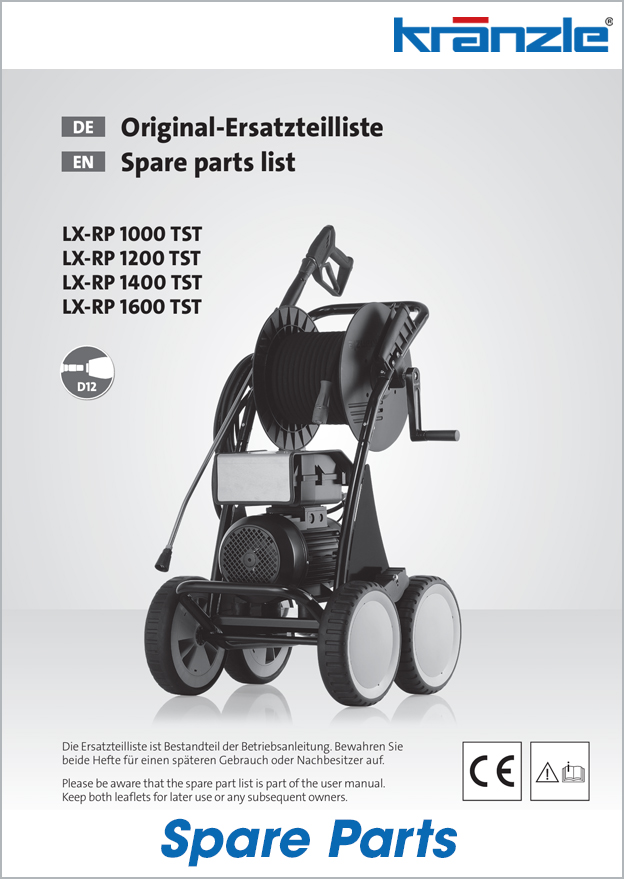

KRANZLE LX-RP 1200, 1400, 1600 TST Unloader
Genuine Spare Parts
See Diagram & Click the link for price & availability
11. Stainless steel ball 8.5 mm 12245
12. Stainless steel spring 14119
18. Piston guide special 42105
21. Spring pressure washer 14126
23. Handwheel 14147
26. Pressure gauges 0-400 bar 150394
27. Aluminum sealing ring 132751
49. O-ring 12136
51. Guide part control tappet 490580
52. O-ring 15017
57. Control plungers long 150102
59. Plug M10x1 (drilled through) 133851
60. Housing electric switch (black) 15204
61. Rubber sleeve 15202
63. Screw connection 15203
64. Cables 44368
65. Screw 15024
66. Electric switch cover (black) 15201
68. Microswitch 44262
69. Cylinder screw 15025
70. Hexagon nut 12138
72. Compression spring 40520
80. Control pistons complete. with handwheel 43444
81. Rep. set pressure switch mechanism 150093
82. Pressure switch (black) without mechanics 44389
83. Valve housing complete. 486070
-
Download Documents
Downloads for this product are currently unavailable, please get in contact if you require any documentation.
