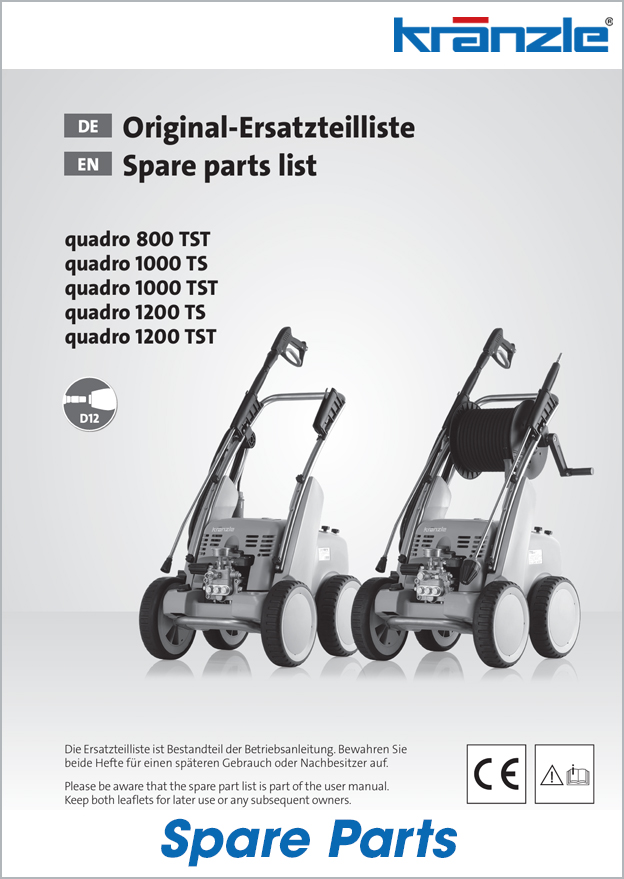

KRANZLE Large Quadro 899 TST, 1000/1200 TS/TST Assembly
Genuine Spare Parts
See Diagram & Click the link for price & availability
Motor pump without electrics
1.1 For quadro 800 TST 426221
1.2 For quadro 1000 TST 426222
1.3 For quadro 1200 TST 426223
1.4 For quadro 1000 TS 40651
1.5 For quadro 1200 TS 426228
2. Push bars 426011
3. Star grip nut M6 42619
4. Stoppers 42613
5. Water tank 42603
6. Lance rack 42604
7 Cable storage at the bottom 42611
8. Strain relief 43431
9. Screw 44525
10. Screw 414141
11. Washer 40207
12. Screw 42620
13. Disc 50186
14. Cable storage at the top 42612
15. Rubber buffers 44227
16. Wheel 44017
17. Split pin 42614
18. Hub cap 44018
19.1 Front panel quadro 800 TST 426091
19.2 Front panel quadro 1000 TST 426092
19.3 Front panel quadro 1200 TST 426093
20. Lance holders 42645
21. Lens screw 13190
22. Chassis 426021
23. Washer 41409
24. Elastic Stop Nut 41410
25. Power connection cable 8 m 44036
26. Hose reel complete. 412596
27. Chemical suction hose (fabric) with filter 42621
28. Fabric hose 0.4m 4622
29. Hose clamp 440545
30. Housing detergent valve 44145
31. O-ring 44150
32. O-ring 44149
33. Regulating piston chemical valve 44147
34. Stainless steel spring 44148
35. Cover for chemical valve 44146
36. Screw 41078
37. Screw 44162
38. Rotary handle chemical valve with cover cap 44151
39.1 Lance with flat jet nozzle for 800 TST 12420-D2504
39.2 Lance with flat jet nozzle for 1000 TS/TST 12420-D2505
39.3 Lance with flat jet nozzle for 1200 TS/TST 12420-D2507
Please specify nozzle size
40. Starlett pistol with extension 123272
41.1 Turbo-Killer 045 on quadro 800 TST 12430-045
41.2 Turbo-Killer 055 on quadro 1000 TST 12430-05
41.3 Turbo-Killer 08 on quadro 1200 TST 12430-08
42. High pressure hose 20 m 41083
46. Set screw 426172
47. Check valve for chemical suction hose. 44240
48. Chemical valve complete (items 30-38) 44052
-
