KRANZLE Large Quadro 899 TST, 1000/1200 TS/TST Turbo Killer

KRANZLE Large Quadro 899 TST, 1000/1200 TS/TST Turbo Killer

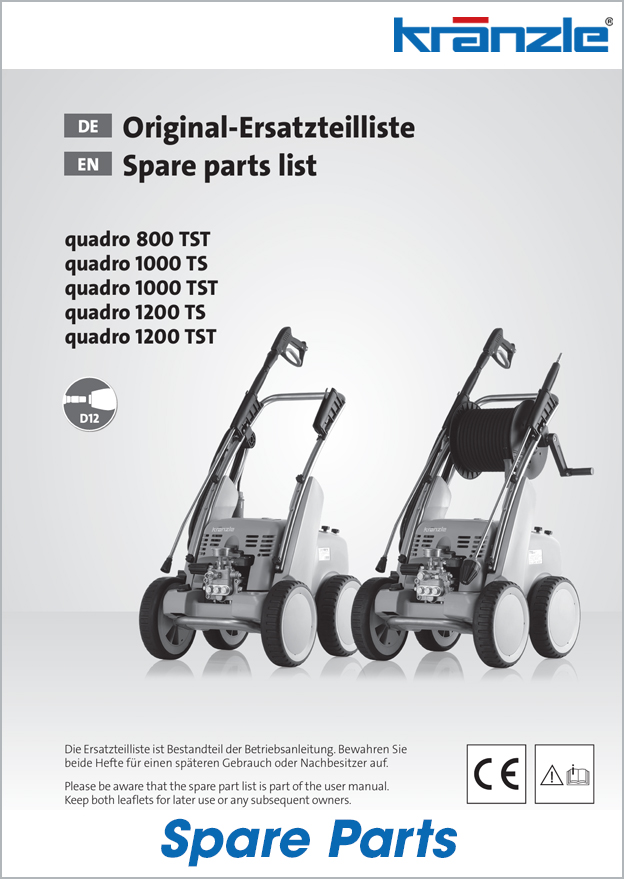

Genuine Spare Parts

See Diagram & Click the link for price & availability

8.1 Lid protection 04 (quadro 800) 41540-04

8.2 Lid protection 05 (quadro 1000) 41540-05

8.3 Lid protection 07 (quadro 1200) 415406

9. Cover 41539

10. O-ring 41538

11. Spray body protection 41528

12. Spray bodies 41529

13. O-ring 41521

14. Nozzle seat 41522

15. Nozzle 04 for quadro 800 TST 41532 0

15.1 Nozzle 05 for quadro 1000 TS/TST 41532 6

15.2 Nozzle 07 for quadro 1200 TS/TST 41532 2

16. Seal ring 41533

17. Rotor 41534

18. Stabilizer 41524

19. Piercing nipples D12 13474

20. Pipe 965 mm, R1/4“ on both sides 13519

21. Handle shells left, right 12406

22. Screw 44525

30. Turbokiller 04 cpl. with lance 12430-04

30.1 Turbokiller 05 cpl. with lance 12430-05

30.2 Turbokiller 07 cpl. with lance 12430-07

40. Rep. Set Turbokiller 04 410969

40.1 Turbokiller repair kit 05 410966

40.2 Turbokiller repair kit 07 410972
