KRANZLE Large Quadro 899 TST, 1000/1200 TS/TST Gun with Lance

KRANZLE Large Quadro 899 TST, 1000/1200 TS/TST Gun with Lance

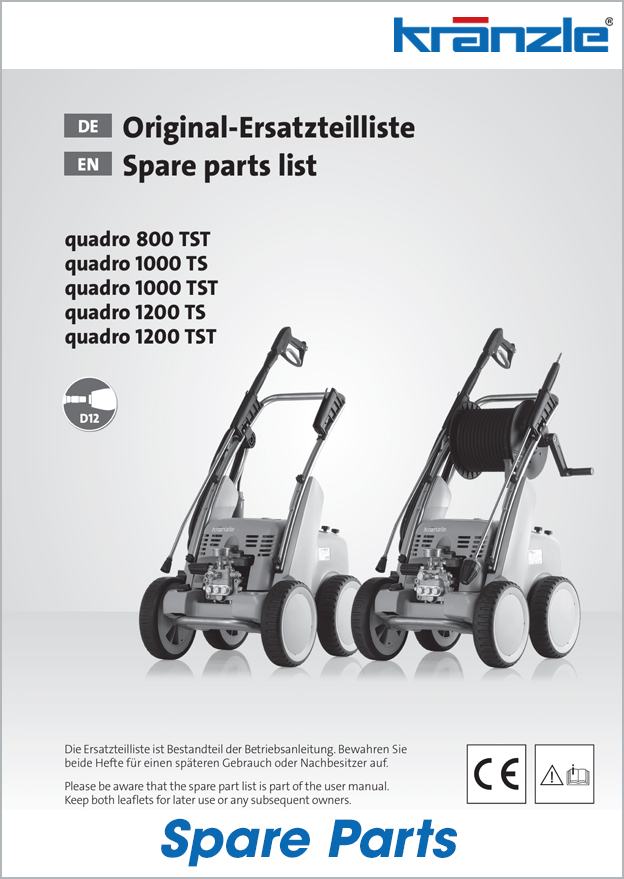

Genuine Spare Parts

See Diagram & Click the link for price & availability

1. Valve body with handle 12294

2. Protective sleeve 12295

3. Cover protection 12296

4. Gray operating lever 122983

5. Safety lever 12149

6. End screw 12247

7. Stoppers 12287

8. Thread guide sleeve 122501

9. Control bolt Ø3 122841

10. Pin 12148

11. Bearing needle 12253

12. Stainless steel spring 12246

13. Stainless steel ball Ø10 12122

14. Stainless steel seat 13146

15. O-ring 12256

16. O-ring 121361

17. Screw 41079

19. Plug nipples hardened stainless steel 13470

20. Pipe 965 long, both sides 1/4" AG 13519

21. Handle shells lance 12406

22. Screw 44525

23. Nozzle protection 26002

24. O-ring 121291

25. Flat jet nozzle 2504 (quadro 800) 1 D2504

25.1 Flat jet nozzle 2505 (quadro 1000) 1 D2505

25.2 Flat jet nozzle 2507 (quadro 1200) 1 D2507

26. Sliding shoe 122891

27. Snap ring 13147

28. Plug-in coupling 13453

29. O-ring 134601

40. Starlet II ST30 Nip. M22AG A:3/8“IG 12329

41. Starlet II E:22x1.5AG A:Plug coupling 123272

42. Lance cpl. with flat jet nozzle D2504 12420-D2504

42.1 Lance cpl. with flat jet nozzle D2505 12420-D2505

42.2 Lance cpl. with flat jet nozzle D2507 12420-D2507
