KRANZLE Large Quadro 899/1000/1200 TST Hose Drum

KRANZLE Large Quadro 899/1000/1200 TST Hose Drum

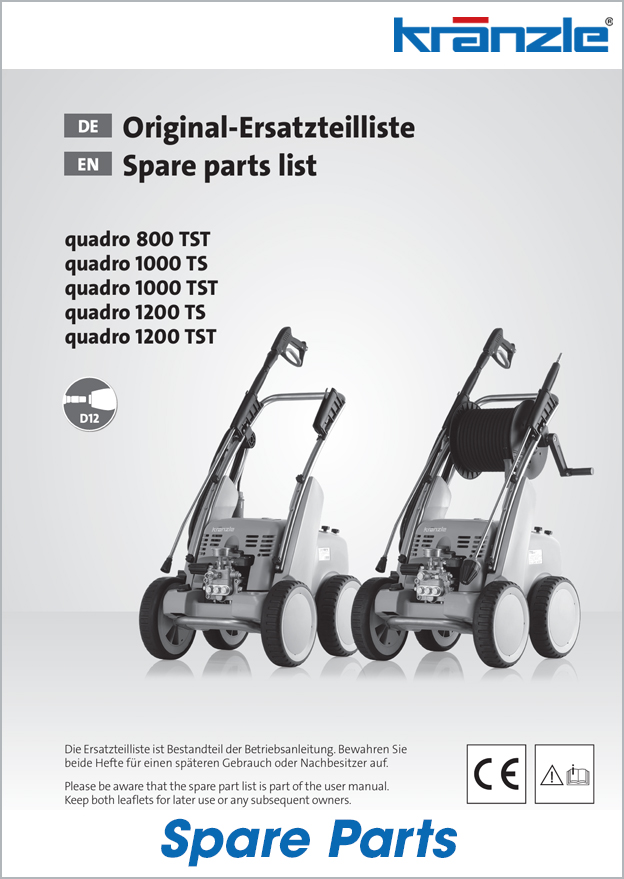

Genuine Spare Parts

See Diagram & Click the link for price & availability

1. Side shell hose guide 40302

2. Side shell water supply 40301

3. Drum lower part 40304

4. Drum upper part 40303

5. Allen screw 40313

6. Bearing block with brake 40327

7. Bearing block left 40305

8. Clamping piece 40307

9. Screw 43018

10. Drive shaft 40328

11. Wave water flow 40311

12. Elastic stop nut 40111

13. Foldable hand crank 403200

15. Disc 40181

16. Shaft retaining ring 22 mm 40117

17. Shaft retaining ring 16 mm 40182

18. Disc 50189

19. Locking disk 40325

20. Parbaks 13159

22. Screw 43021

23. Swivel joint 40167

25. Spacer ring 40316

27. O-ring 405852

28. Connection piece 40308

33. O-ring 13386

34. Plugs 13385

40. Union nut 132762

42. O-ring 13273

44. Connecting hose 42624

45. High pressure hose NW 8 20 m 41083

Hose drum complete without high pressure hose 412596
