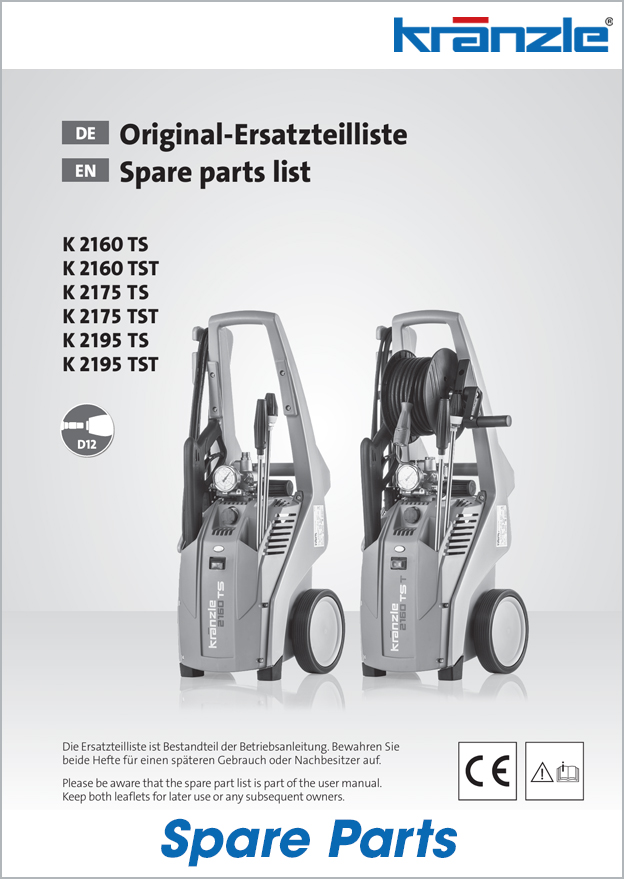

KRANZLE K 2000 Series TST Hose Drum
Genuine Spare Parts
See Diagram & Click the link for price & availability
1. Side shell 48101
2. Drum part 48102
3. Bend protection 40162
4. Screw 43018
5. Drive shaft 481041
8. Screw 43423
10. Connecting pipe 48014
11. Water inlet part (2160 TST, 2175 TST) 48103
11.1 Water inlet part (2195 TST) 481032
12. O-ring 40177
16. Shaft locking ring 22 mm 40117
17. O-ring 13273
19. Suction pin hose connection 13236
20. Stainless steel ball 5.5 mm 13238
21. Stainless steel spring 13239
22.1 Input injector (2160 TST , 2175 TST) 40317
22.2 Input injector (2195 TST) 401692
23. O-ring 43068
24. O-ring 405852
25. High pressure hose 15m NW6 48015
26. Chemical suction hose with filter 150386
30. Hose reel complete, without HP hose 48100
31 Retrofit kit hose reel, with HP hose 481001
-
Download Documents
Downloads for this product are currently unavailable, please get in contact if you require any documentation.
