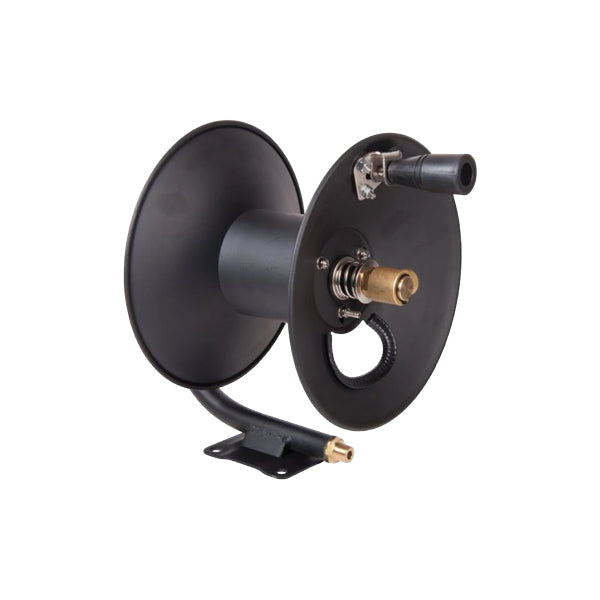

MTM Manual Hose Reel to fit your Original 10m 15m 20m Kranzle Hose

  • High-Pressure Hose Reel order no. 27.0445

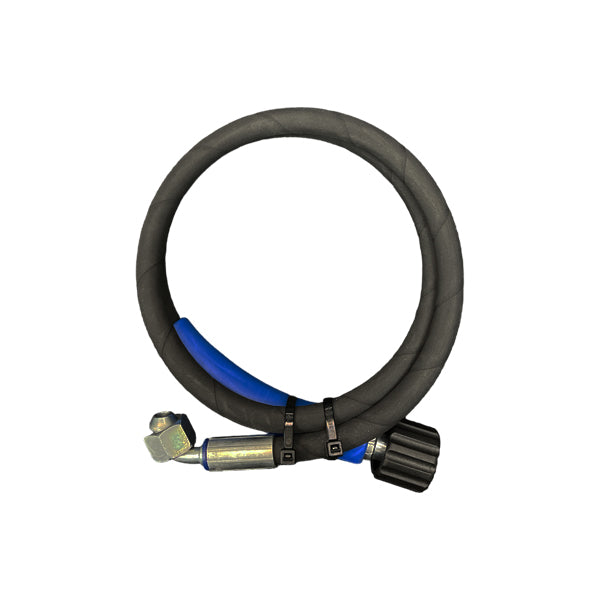

    Comes complete with M22 outlet connection for your existing Kranzle high-pressure hose & a 2m high-pressure pigtail hose to your machine

    NOTE: as you can see from the second image the original Kranzle high-pressure hose overhangs the reel slightly but will not affect its usability.

    PLEASE NOTE- This item is NOT Kranzle branded and if used in incorrectly may invalidate the warranty,

    Technical Data:

    15m capacity - 3/8" 1 wire hose or 20m - 1/4" 1wire hose
    275 Bar max pressure
    60°C max temperature
    Hose not included
    Painted metal reel
    Brass swivels
    M22m inlet
    3/8"BSPF outlet
    200W x 270D x 320H (mm)


      Compatible With: STD Kranzle 10m, 15m, 20m, 1wire hose


      Alternative part numbers :- 270445, mtm hose reel,
