KRANZLE E-Therm 873 M 48kW (415V) Electrically Heated

£6,359.99
Seen it Cheaper?
  • KRANZLE E-Therm 873 M 48kW (415V)  no. 642350 - with 20 m hose reel 642360

    The Kranzle Therm E-M machines are distinguished by their outstanding pump technology and highly efficient heating by means of the latest electrical state-of-the-art flow heaters. The hose drum version offers a 20 m high-pressure hose enabling its operating radius to extend by more than three times.

    Built to order! Approximate lead time: 3-5 weeks



    Features & Benefits

    INSTANT HOT WATER

    All heating is powered electrically

    Accurate temperature control to +/- 1°C

    Integrated Operating hours meter

    Stainless steel pressure gauge

    Detergent application

    Stainless steel lance with flat jet nozzle

    The integrated trolley takes rough ground in its stride

    Hose drum

    20 m high-pressure hose

    Electrical flow heater

    3 m power lead with plug

    Stainless steel lance with flat jet nozzle

    Neat arrangement system

    Parking brake


    Alternative part numbers :- 642350

  • Technical Data:

    Operating pressure adjustable bar / MPa: 30-100 / 3-10 (using 045 nozzle) or 30-160 / 3-16 (using 03 nozzle)

    Max. admissible overpressure bar / MPa: 215 / 21.5

    Connected load, V / ~ / Hz / A: 400 / 3 / 50 / 41.2

    Motor speed Rpm: 1400

    Water output l/min & l/h: 10 / 600 (using 045 nozzle)  8.6 / 516 (using 03 nozzle)

    Power Needed: 26.6 Wattage - 63 Amp

    Volume water tank l: 4

    Hot water output  °C: 47 (using 045 nozzle) / 52 (using 03 nozzle)

    Heating output kW: 24

    Power supply cable, m: 3

    Dimensions (L x W x H) mm: 1050 x 800 x 1015

    Weight (kg): 178



    Equipment:

    Steel braided high-pressure hose (m) 10

    Trigger gun with safety catch (model) Starlet

    Stainless steel lance with flat jet nozzle (nozzle size) D25045 or 03

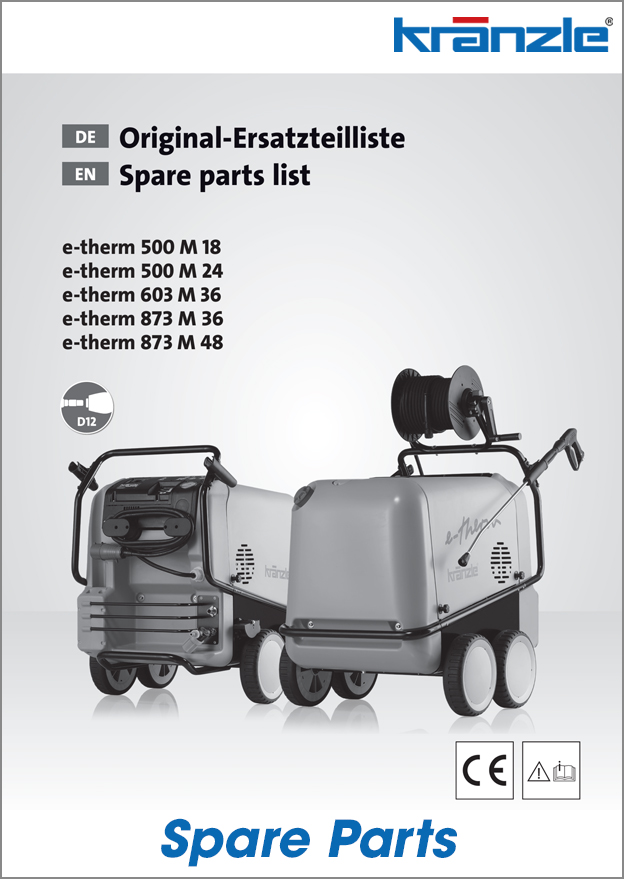

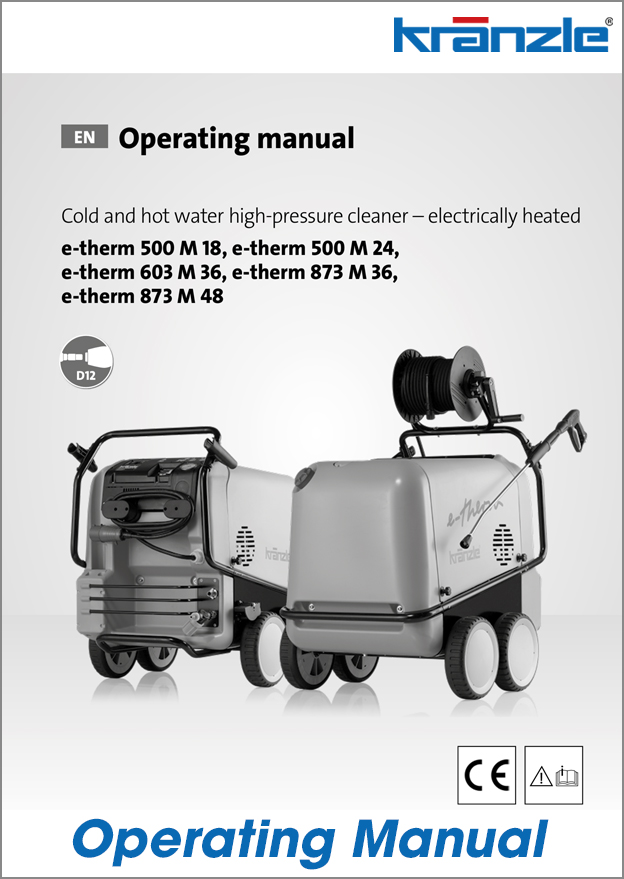

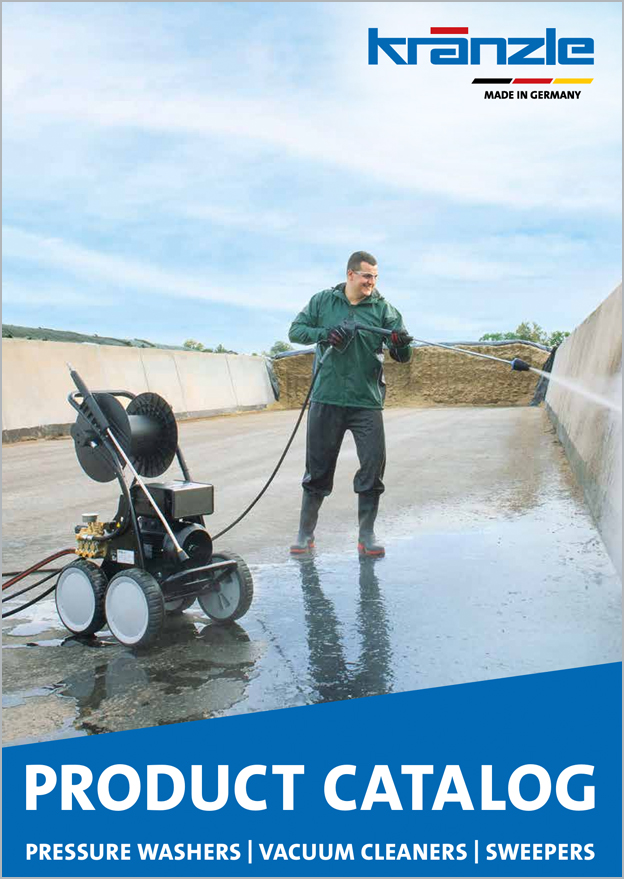

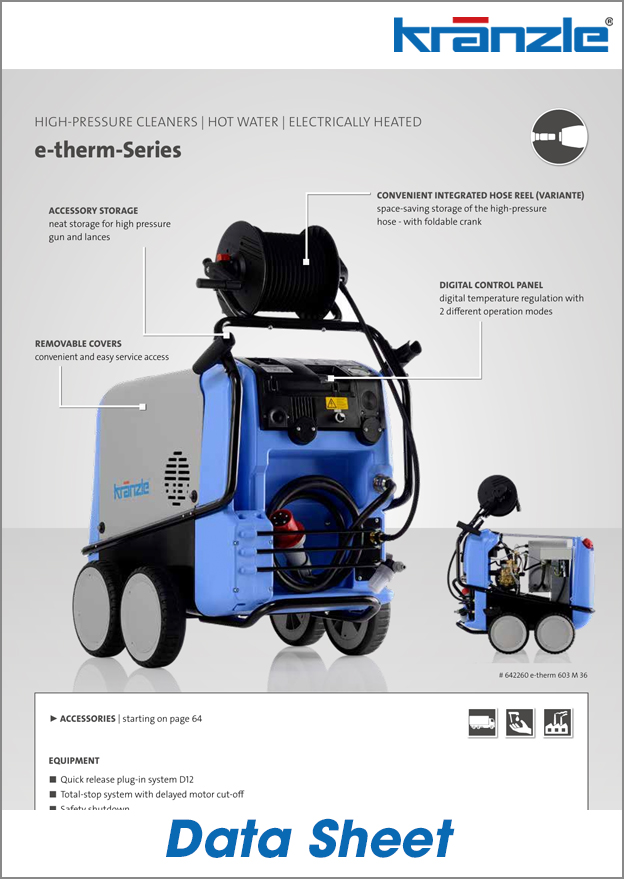

  • Download Documents

    Downloads for this product are currently unavailable, please get in contact if you require any documentation.
