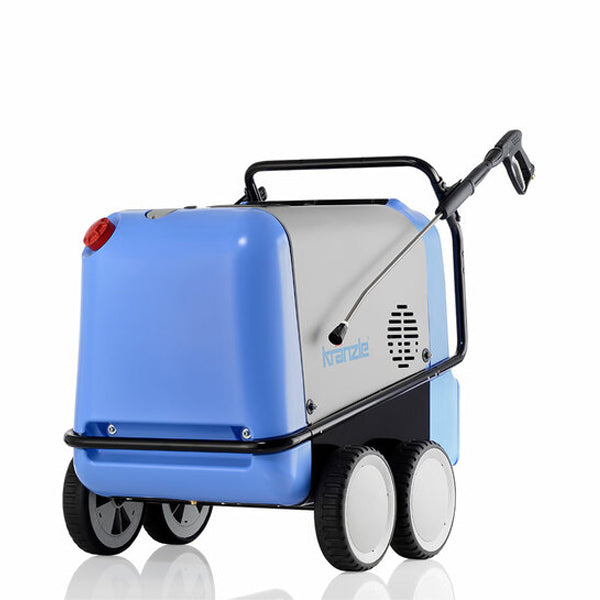

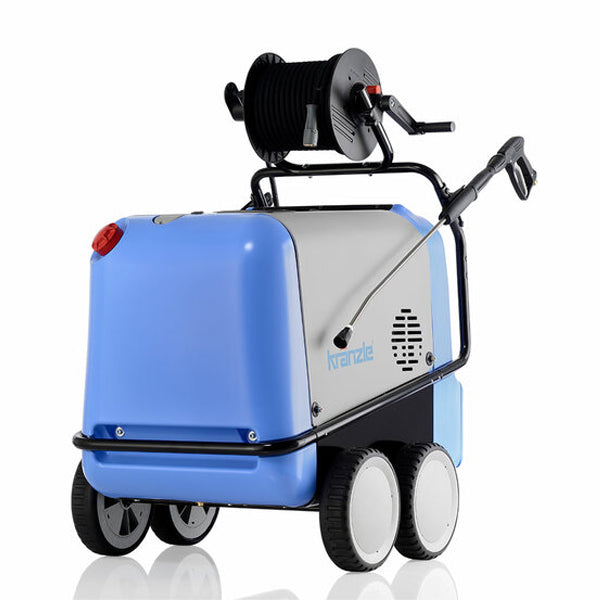

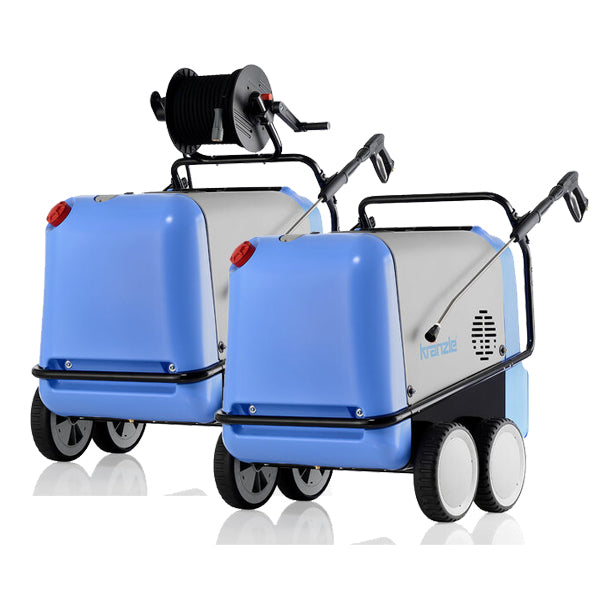

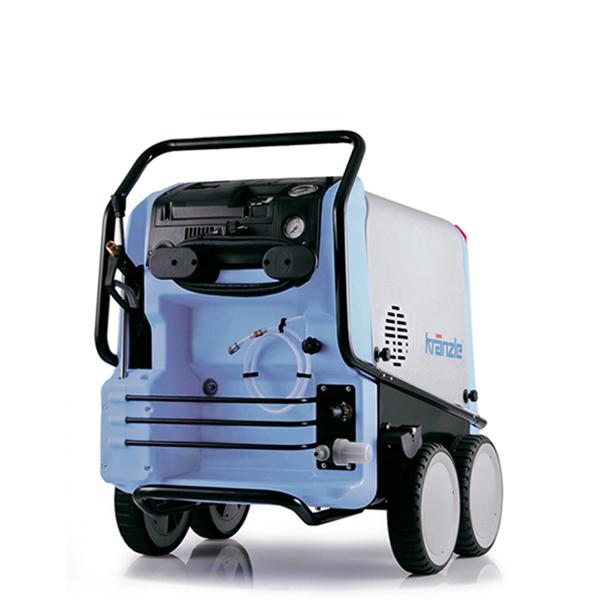

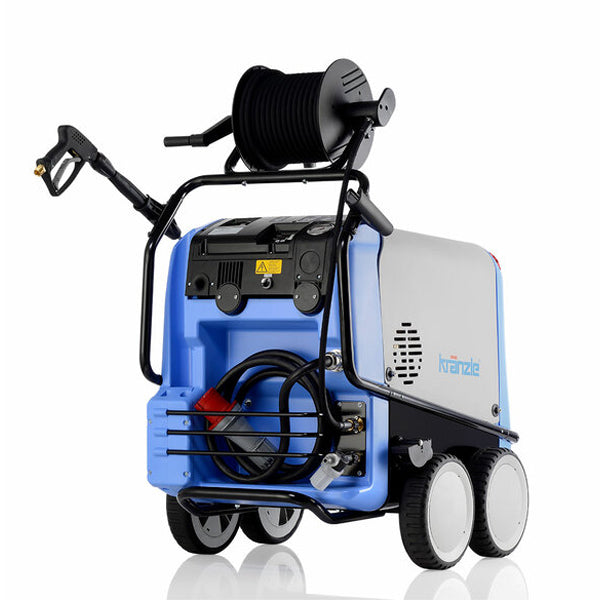

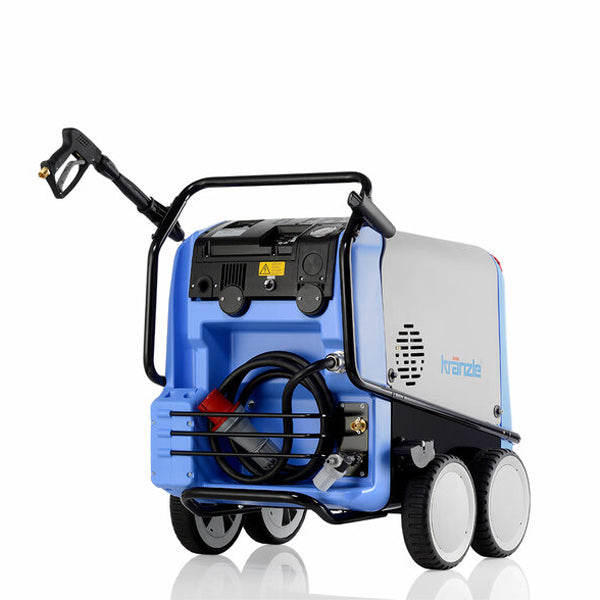

KRANZLE E-Therm 873 M 48kW (415V) no. 642350 - with 20 m hose reel 642360
Product Update: New Starlet Guns have replaced the old M2000 Guns Built to order! Approximate lead time: 3-5 weeks

The Kranzle Therm E-M machines are distinguished by their outstanding pump technology and highly efficient heating by means of the latest electrical state-of-the-art flow heaters. The hose drum version offers a 20 m high-pressure hose enabling its operating radius to extend by more than three times.
Features & Benefits
Quick release plug-in system D12
Total-stop system with delayed motor cut-of
Safety shutdown
Pressure regulation
Twist-Stop screw connection
Locking brake
Direct suction: Suction height 2.5 m
Water tank: Volume 12 liters
CEE 125 A plug
Electrically heated instantaneous water heater
Digital thermostat
Eco Level
Flow monitor
Overheating protection
Operating hours meter
Accessory storage
Removable covers
Digital control panel
Included With Machine:
High Pressure Hose (m) 10 (without hose reel)
High Pressure Hose (m) 20 (with hose reel)

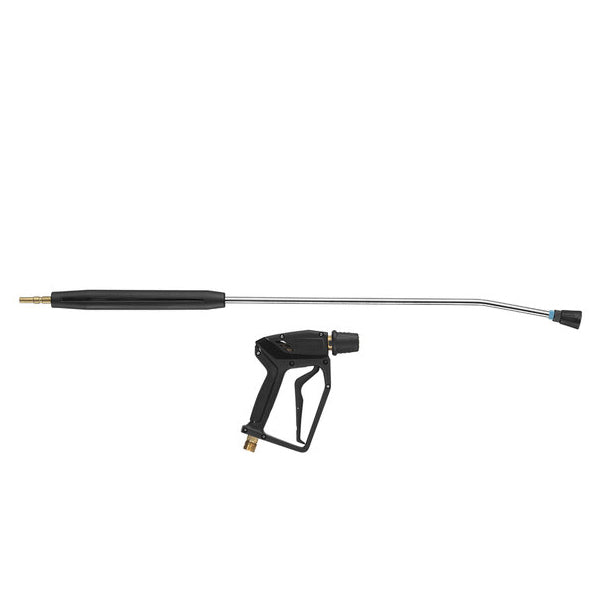

Starlet 3 Trigger Gun
Lance with Flat-jet Nozzle
Water inlet filter
Alternative part numbers :- 642350, 6423500, 64.2350.0, 642360, 6423600, 64.2360.0
Ord. no.
642350
642360
Operating pressure
bar
30-150
30-150
Operating pressure
MPa
3-15
3-15
Water output
l/h
780
780
Admissible overpressure
bar
170
170
Admissible overpressure
MPa
17
17
Motor speed
U/min
1400
1400
Connection Voltage
V
400
400
Connection Phase
~
3
3
Connection Frequency
Hz
50
50
Connection Amperage
A
76
76
Power intake
kW
52
52
Power supply cable Length
m
5
5
Length
mm
1050
1050
Width
mm
800
800
Height
mm
1015
1450
Hot water output
°C
12-80
12-80
Heating output
kW
48
48
Weight
kg
160
168
-
Download Documents
Downloads for this product are currently unavailable, please get in contact if you require any documentation.
