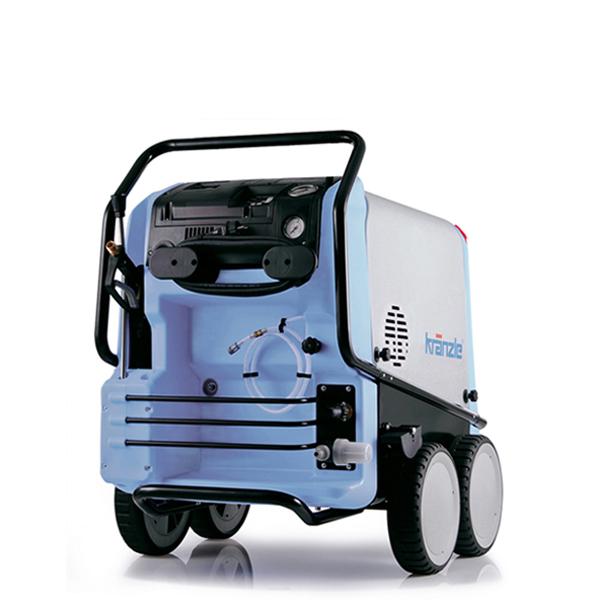

KRANZLE E-Therm 603 M 36kW (415V) no. 642250 - with 20m hose reel 642260
The Kranzle Therm E-M machines are distinguished by their outstanding pump technology and highly efficient heating by means of the latest electrical state-of-the-art flow heaters. The hose drum version offers a 20 m high-pressure hose enabling its operating radius to extend by more than three times.
Built to order! Approximate lead time: 3-5 weeks
Features & Benefits
INSTANT HOT WATER
All heating is powered electrically
Accurate temperature control to +/- 1°C
Integrated Operating hours meter
Stainless steel pressure gauge
Detergent application
Stainless steel lance with flat jet nozzle
The integrated trolley takes rough ground in its stride
Hose drum
20 m high-pressure hose
Electrical flow heater
3 m power lead with plug
Stainless steel lance with flat jet nozzle
Neat arrangement system
Parking brake
Alternative part numbers :- 642250
Technical Data:
Operating pressure adjustable bar / MPa: 30-100 / 3-10 (using 045 nozzle) or 30-160 / 3-16 (using 03 nozzle)
Max. admissible overpressure bar / MPa: 215 / 21.5
Connected load, V / ~ / Hz / A: 400 / 3 / 50 / 41.2
Motor speed Rpm: 1400
Water output l/min & l/h: 10 / 600 (using 045 nozzle) 8.6 / 516 (using 03 nozzle)
Power Needed: 26.6 Wattage - 63 Amp
Volume water tank l: 4
Hot water output °C: 47 (using 045 nozzle) / 52 (using 03 nozzle)
Heating output kW: 24
Power supply cable, m: 3
Dimensions (L x W x H) mm: 1050 x 800 x 1015
Weight (kg): 178
Equipment:
Steel braided high-pressure hose (m) 10
Trigger gun with safety catch (model) Starlet
Stainless steel lance with flat jet nozzle (nozzle size) D25045 or 03
-
Download Documents
Downloads for this product are currently unavailable, please get in contact if you require any documentation.
