KRANZLE WS RP 1400 TS Pressure Cleaner order no. 4131600
With 22 litres per minute flow-rate and a continuously adjustable working pressure of up to 180 bar, a stainless steel housing permits for convenient use as a free standing unit or for easily installing for using as a wall-mounted device. Supplied with a stainless steel pressure gauge and TS (total-stop) system as standard, along with a 10 metre high-pressure hose, quick-release trigger gun and lance equipment.
Suitable for installing into existing piping around a factory, or for professional forecourt use.Optional Cabinet Kit: includes all Connections, Fittings & Hoses
Features & Benefits
NEW: Kranzle In-line piston pump with integrated unloader valve and pressure switch
Total-stop-system with delayed motor cut-off, improves seal life-span and reduces power consumption
Pressure regulation, allows operating pressures to be set to suit any task
Quick-release fittings, for simple and quick lance changes
7.5 m power lead
Cover of stainless steel
Storage for trigger gun with safety catch and lance
Alternative part numbers :- 4131600, 413160.0, 41.316.0
Technical Data:
Operating pressure adjustable bar / MPa: 30-170 / 3-17
Max. admissible overpressure bar / MPa: 200 / 20
Connected load, V / ~ / Hz / A: 400 / 3 / 50 / 14.4
Motor speed Rpm: 1440
Water output l/min & l/h: 23.3 / 1400
Power intake / Power output kW: 8.0 / 6.3
Dimensions (L x W x H) mm: 670 x 430 x 510
Weight (kg): 62
Equipment:
Steel braided high-pressure hose (m) 10
Trigger gun with safety catch (model) Starlet
Stainless steel lance with flat jet nozzle (nozzle size) 08
-

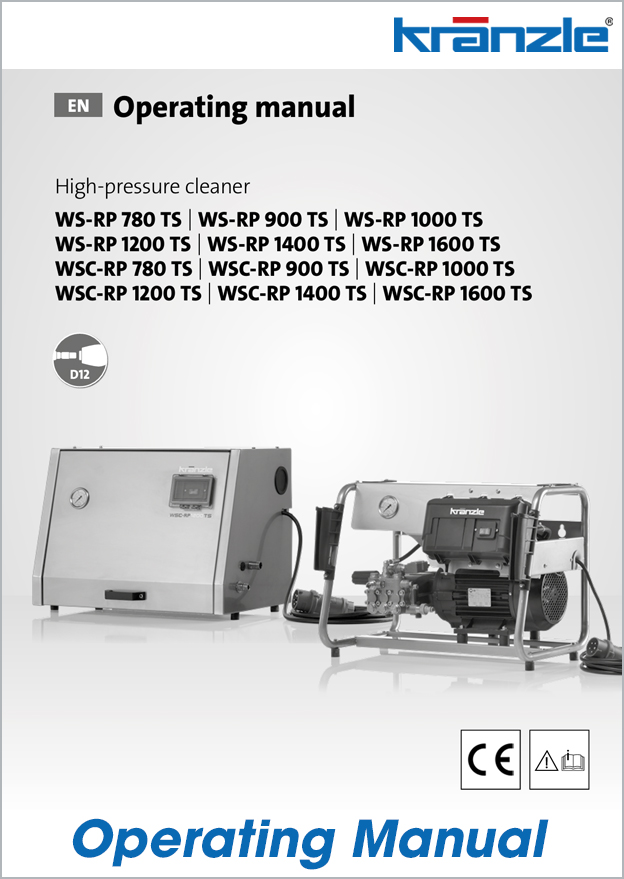

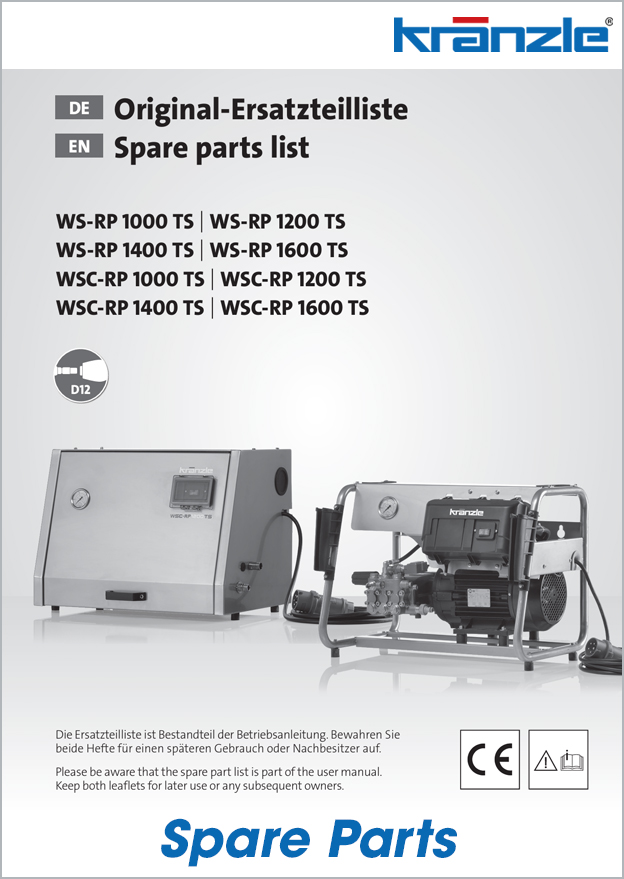

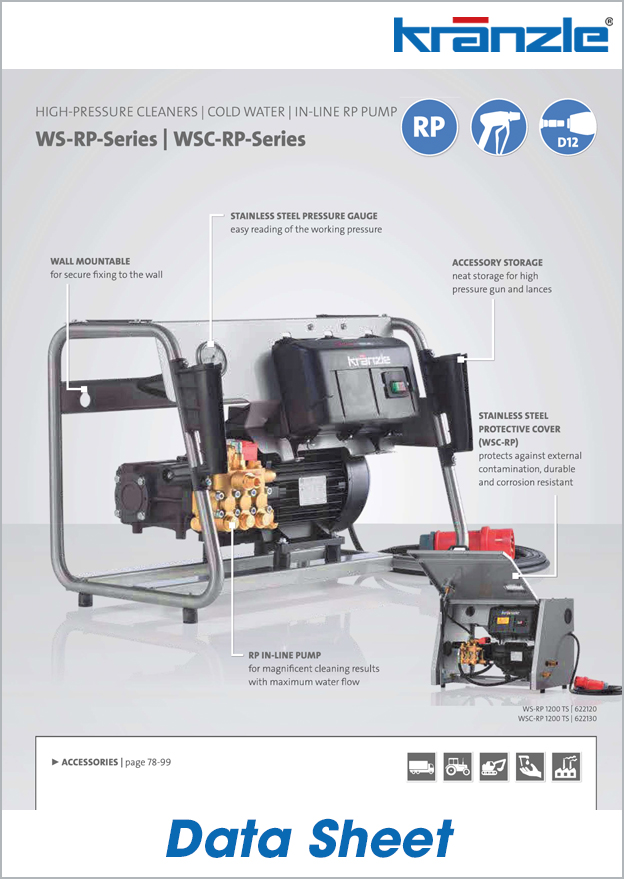

Download Documents
