KRANZLE 1154 TST Unloader

KRANZLE 1154 TST Unloader

Seen it Cheaper?

KRANZLE 1154 TST Unloader

Genuine Spare Parts

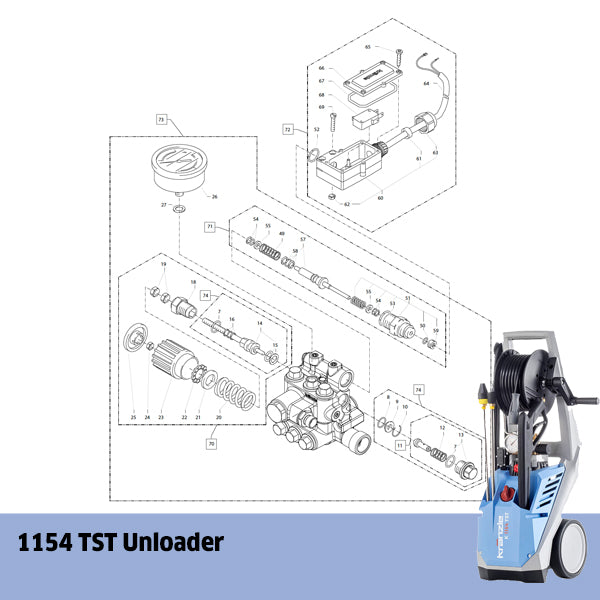

See Diagram & Click the link for price & availability

7. O-ring 12 x 2 150051

8. O-ring 11 x 1.5 12256

9. Stainless steel seat 14118

10. Retaining ring 13147

11. Starting relief valve 490411

12. Stainless steel spring 49042

13. Sealing screw 49043

14. Control piston 6 mm with seals 44532

15. Parbaks for piston 14mm 141231

16. Parbaks for spindle 6mm 141232

18. Piston guide 6mm 496024

19. Nut M6 141271

20. Valve Spring 14124

21. Spring pressure washer 43047

22. Ball bearing 43048

23. Handwheel M6 430491

24. Nut M6 with SW8 43010

25. Cap for handwheel 430501

26. Pressure gauge 15039

27. Aluminum sealing ring 132751

49. Compression spring 1 x 8.6 x 30 40520

50. O-ring 3.3 x 2.4 12136

51. Guide part control plunger 490580

52. O-ring 13 x 2.6 15017

53. O-ring 14 x 2 43445

54. Parbaks 4mm 121362

55. Support washer 150151

57. Control plunger long 150102

58. Parbaks 7mm 15013

59. Plug M10x1 (drilled through) 133851

60. Housing, electrical switch 15204

61. Rubber sleeve 15202

62. Hex nut M4 12138

63. Union nut PG 11 15203

64. Cable 2 x 1.5 mm² 49023

65. Sheet metal screw 2.9 x 19 15024

66. Cover, electrical switch 15201

67. O-ring 44 x 2.5 15023

68. Microswitch 15018

69. Socket head cap screw M 4 x 22 15025

70. Control piston, complete m. Handwheel 496026

71. Repair kit pressure switch mechanism 150093

72. Complete pressure switch without mechanism 49054

73. Complete valve housing (K1154 TST) 496037

74. Repair kit unloader valve 49055

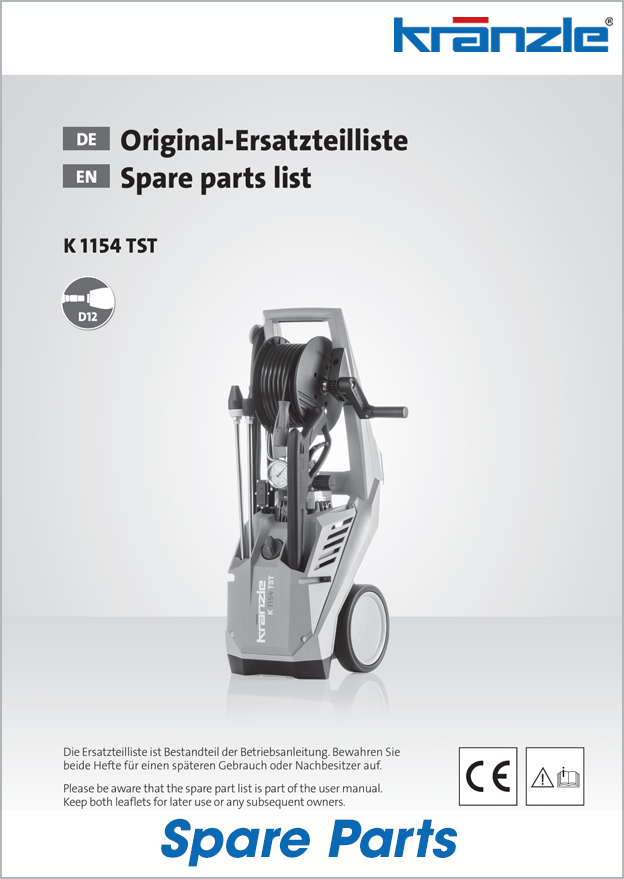

Download Documents

Downloads for this product are currently unavailable, please get in contact if you require any documentation.
