KRANZLE 1154 TST Motor

KRANZLE 1154 TST Motor

Genuine Spare Parts

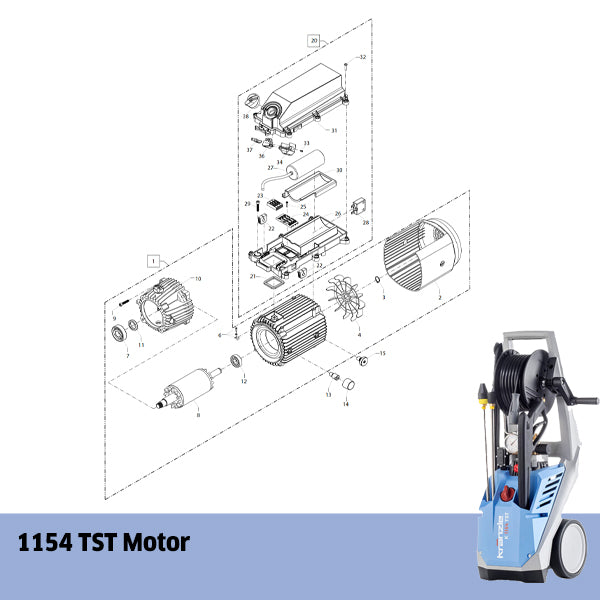

See Diagram & Click the link for price & availability

1. Motor 230V / 50 Hz complete without electrical components 496400

2. Hood air duct 496250

3. Shaft retaining ring 17 x 1 49282

4. Fan wheel 49281

6. Grounding screw complete 43038

7. Motor bearing A-side 7304 41027

8. Rotor 230V 50Hz 496251

9. Hex socket screw M6 x 35 40131

10. Oil housing complete 496260

11. Oil seal Ø25 x Ø35 x7 41024

12. Engine mount B-side 6203 49288

13. Mounting bolt 496254

14. Engine rubber mount 49285

15. Engine bearing bolt 423025

20. Control box complete K1154 423040

21. Rubber seal 496255

22. Feed-through grommet 491151

23. Single feed-through connector 423028

24. Terminal block holder 423029

25. Sheet metal screw 3.5 x 9.5 41088

26. Control box base 423022

27. Capacitor 50 µF 496256

28. Single-pole overcurrent release 16 A 491251

29. Hex socket screw M6 x 16 44831

30. Capacitor mounting bracket 423027

31. Control box cover 423023

32. Screw 5.0 x 20 454211

33. Screw 3.5 x 14 44525

34. Holder for rocker switch 457033

36. On/off switch 464223

37. Switching cam 457032

38. Rotary knob for on/off switch 457031

45. Mains connection cable for 3x 1.5 mm² (UK) 43459
