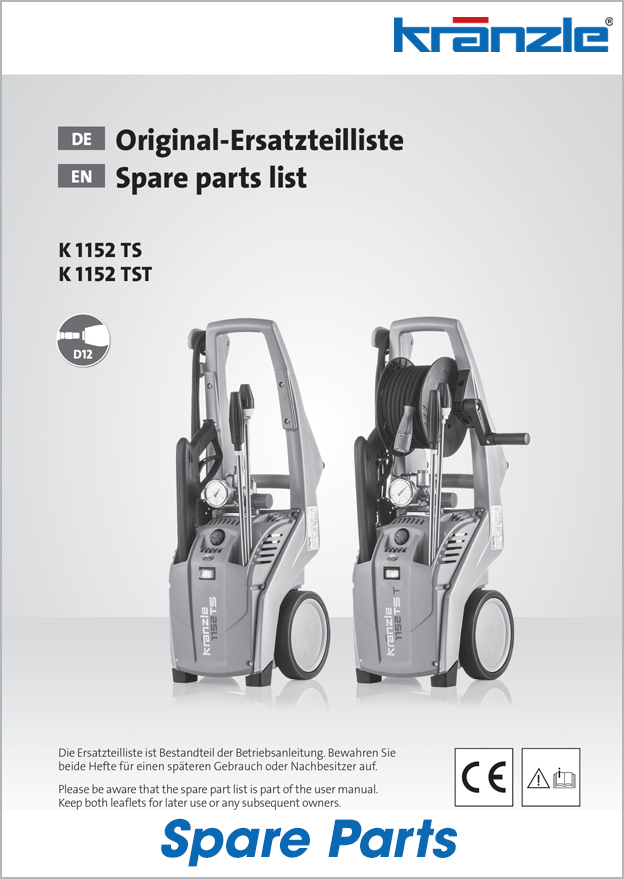

KRANZLE 1152 TST Hose Drum
Genuine Spare Parts
See Diagram & Click the link for price & availability
1. Side Shell 48101
2. Drum 48102
3. Anti Kink Protection 40162
4. Screw 43018
5. Drive Shaft 481041
7. Bearing Block On Left 43810
8. Screw 43423
9. Bearing Block On Right 43811
10. Connecting Pipe 49014
11. Water Input Part 481031
12. O'Ring 40177
16. Shaft Retaining Ring 40117
17. O'Ring 13273
18. Sealing Kit 134101
19. Suction Spigot Hose Connection 13236
20. Stainless Steel Ball 5.5mm 13238
21. Stainless Steel Spring 13239
22. Input Injector 40169
23. O'Ring 43068
24. O'Ring 41521
26. Chemical Suction Hose With Filter 15038
30. Hose Drum Complete Without HP Hose 48100
-
Download Documents
Downloads for this product are currently unavailable, please get in contact if you require any documentation.
